Cupra r suspension

[Manic172]

I seen that all suspension parts be I g shocks. Antiroll bars lower arms etc all say for the cupra r or not. What is the difference between a "R" suspension and a normal leon



[Yellow fr]

The anti roll bars ,front shockers and lower arms are all different on the cupra r

The anti roll bar if I remember right sits in a different place as the drop links go from the anti roll bar up to the front shocker
The lower arms are a cast steel

The normal Leon has a lower arm where the anti roll bar drop links bolts into it


Sent from my iPhone using Tapatalk



[Yellow fr]

Leon arm

Cupra r arm


Sent from my iPhone using Tapatalk



[bruceR]

That’s correct, however, I’m sure a member on here found a TT cast wishbone with the link point of a cupra


Sent from my iPhone using Tapatalk



[Manic172]

I have some "r" lower arms to fit. But am going to fit black pollybush to them first. Main reason is as I am going to be ordering my suspension struts soon . Going for AST with coil overs on the rear I want to make sure I get all the right set up.
Then it's going to have whiteline anti roll bars front and rear.
I been told that the "r" set up is the same as a 2wd audi??



[Manic172]

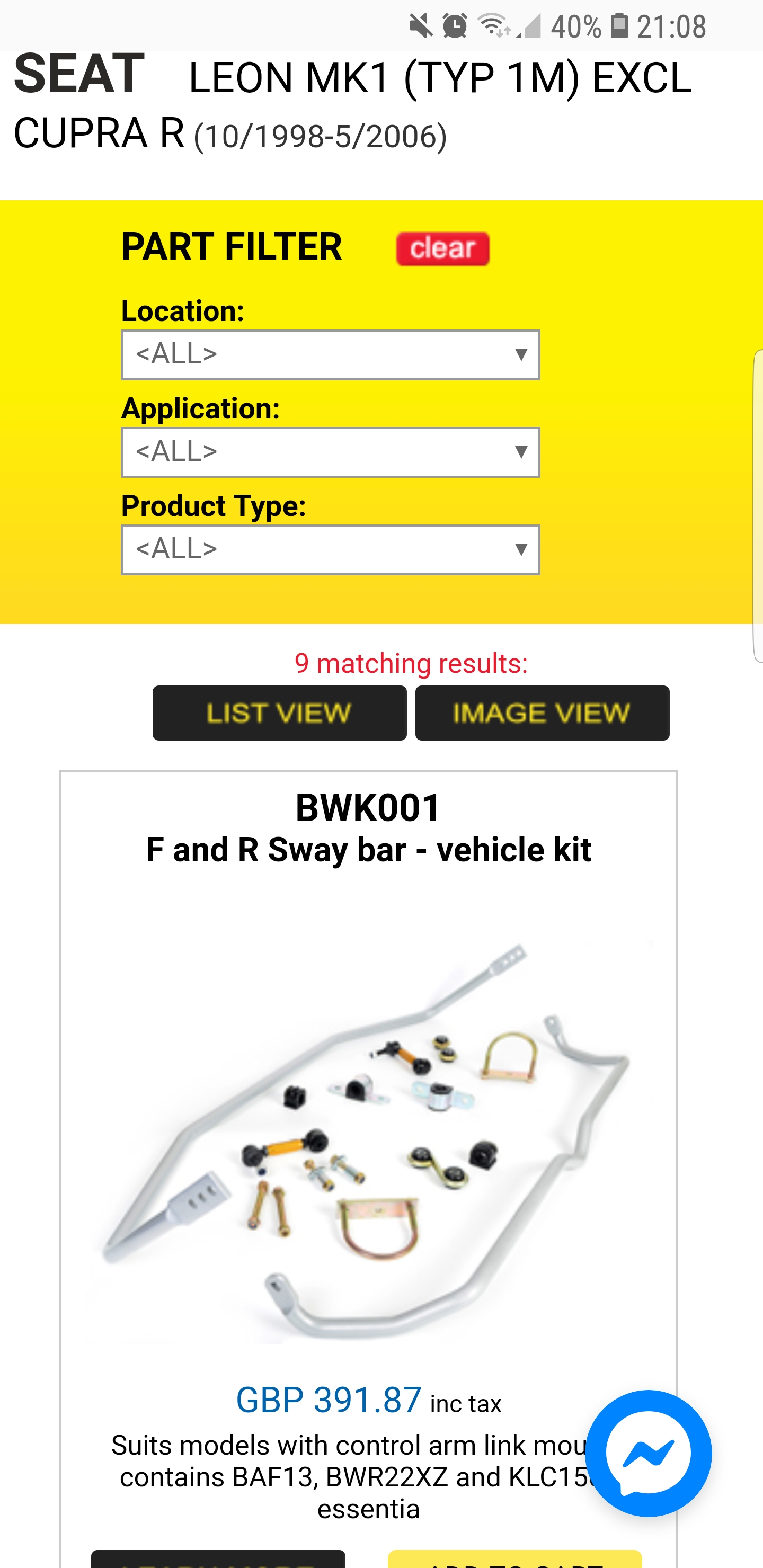

Just had a look. I guess they not doing for the "r"



[Sparkie]

Whiteline do, do them for the R.
Eibach do a version for the TT which is a direct fit. Has adjustable front.


Badger5 Custom Map + TIP,
3”Custom exhaust, FMIC, Bosh 550’s, BC Coilovers, ARB’s +loads more.



[themermade]

whiteline do roll bars for the R, make sure you get the cast bushes for the R arms https://powerflexstore.co.uk/seat/leon-cupra-mk1-typ-1m-2wd-1999-2005/



[Thai-wronghorse]

That’s correct, however, I’m sure a member on here found a TT cast wishbone with the link point of a cupra


Sent from my iPhone using Tapatalk

Yes some early TT cast arms came with a small nub which can be drilled and tapped to accept the stock ARB drop links rather than using the longer R / TT shock mounted type.
However these are quite difficult to source.

Sent from my SM-G960F using Tapatalk



[Ash1998]

I know this was a while back but could anyone direct me to the cheapest mk1 Leon cupra r front arms? Looking online, they all appear to be ‘not for cupra r’
Thanks!



[Manic172]

https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.co.uk/ulk/itm/273901835054

Push out the old bushes and replace with new or go powerflex



[Yellow fr]

Some cupra r arms with power flex bushes in the parts for sale on here


Sent from my iPhone using Tapatalk
