wiring scheme for double USB module in the center console?

[vikram soni]

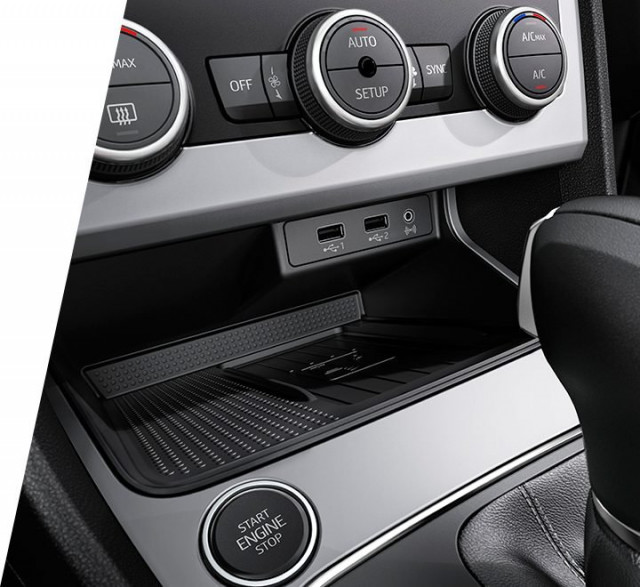

does anyone has the wiring diagram for the double USB connector in the center console, which comes in new Seat Leon? I would appreciate if someone could post it here. THanks!



[vikram soni]

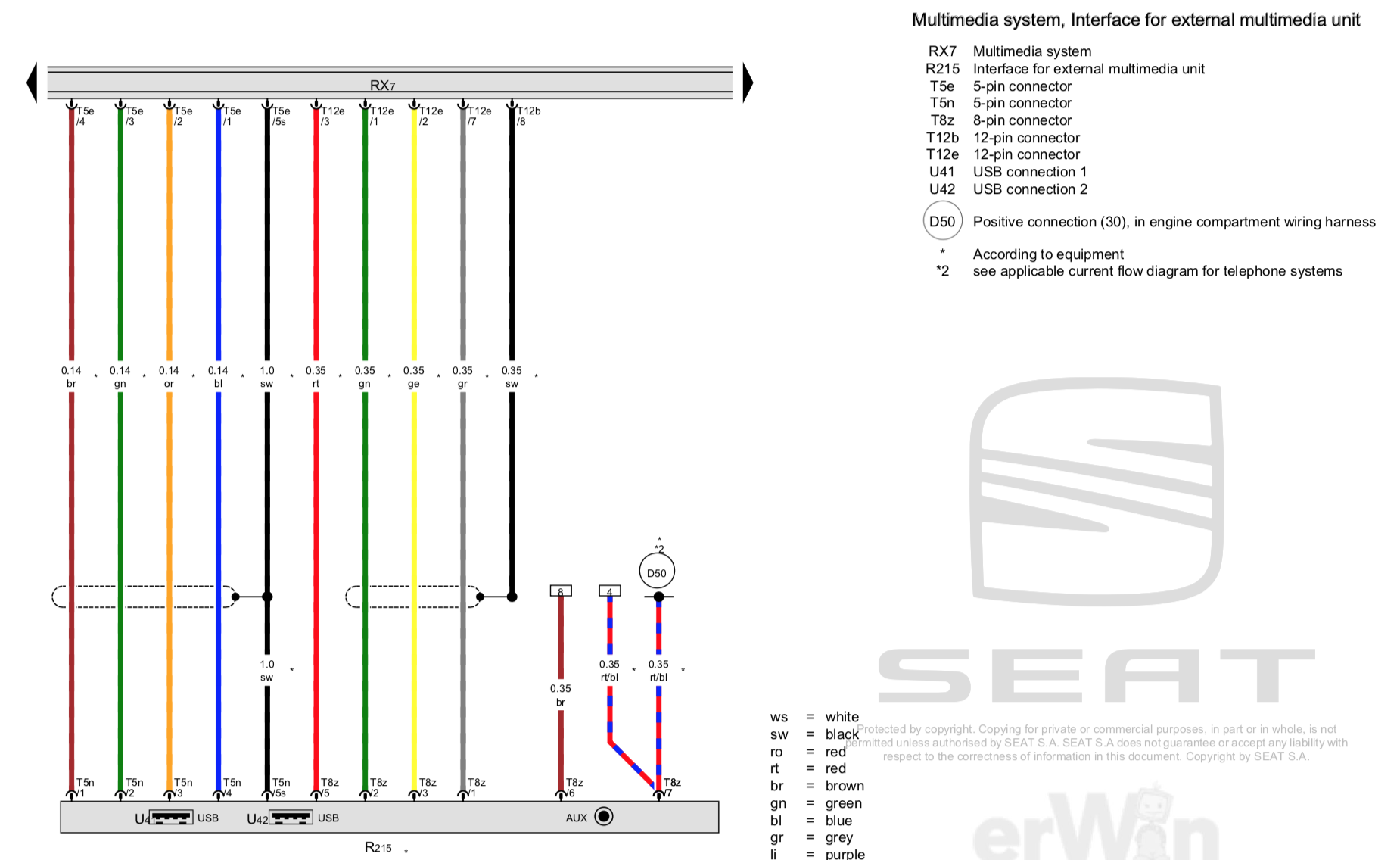

I found out the wiring schema, just ordered a USB module off ebay (pt# 575035736).
will install in my car once it arrives more updates to come shortly.



[Alvaroalon96]

Hi Vikram,

can you give me some info about the wiring scheme?

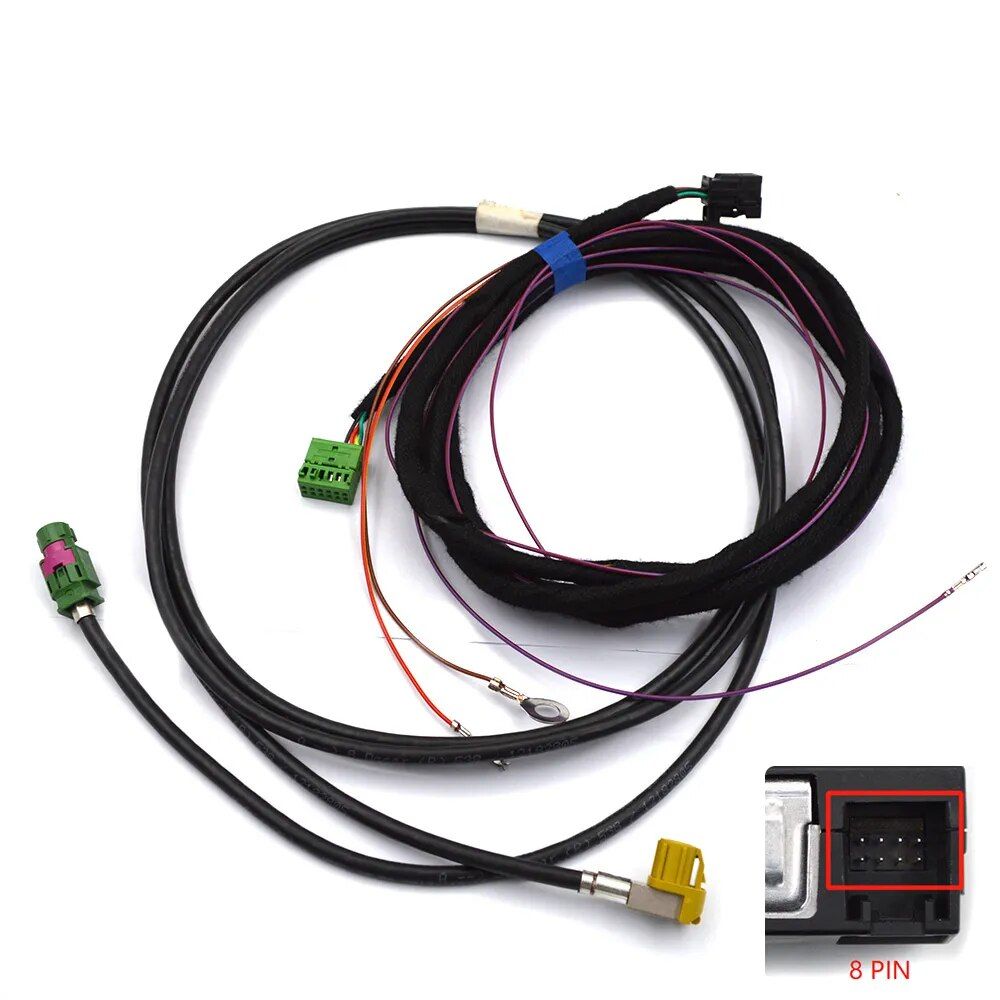

I found the following cable on aliexpress that seems to be perfect for this USB...
But I don't understand where the two loose cables go... I think it needs 12v but I don't know where to put it. Thank you



[Antani81]

Hello, do you know which is the P/N of the cable from this twin USB unit pt# 575035736, to the MIB2 unit?
I have an Ibiza, but i guess the cable is the same. Thank you
