Right i put 2 new 10amp fuses in there and i got nothing, but something has made one of them blow again? is there a picture anywhere i can get of the fuse box?



[LEE69]

On the back of the fuse board it is printed the number in the manual it tells you what fuse does what.
Something is shorting it out, was it ok before you tried to change them?



[LeonUser]

On the back of the fuse board it is printed the number in the manual it tells you what fuse does what.
Something is shorting it out, was it ok before you tried to change them?

Right ok ill have a look tomorrow, and yeah was perfect before i tried putting this LED bulb in, dont know what else it could be?

is it 10amps or spose be 5? 15? 30?



[LEE69]

You have shorted something to earth

Layout of fuses
No. Component A1)
1– Heated washer jets,
heated mirrors......................... 10
2– Indicators ............................... 10
3– Lights ..................................... 5
4– Number plate lighting ............. 5
5– Comfort on and off .................. 7.5
6– Central locking ........................ 5
7– Reverse lights ......................... 10
8– Telephone............................... 5
9– ABS ........................................ 5
10– Petrol engine control unit ........ 10
11– Instrument panel..................... 5
12– Supply current, diagnosis,
telephone ............................... 7.5
13– Brake lights ............................ 10
14– Interior lighting, central locking/
electric windows...................... 10
Interior light ............................ 5
15– Instrument panel,
automatic gear box.................. 5
16– Magnetic clutch, electric
water pump............................. 10
17– Free ........................................ 7.5
18– Main beam, right ..................... 10
19– Main beam, left ....................... 10
20– Dipped beam, right ................. 10
21– Dipped beam, left.................... 10
22– Side light, right ....................... 5


No. Component A1)
23– Side light, left ......................... 5
24– Windscreen washer system,
pump ...................................... 20
25– Heating, air conditioning ......... 25
26– Heated rear window................. 20
27– Rear window wiper .................. 10
28– Fuel pump ............................... 15
29– Engine control, petrol engine ... 10
30– Sliding roof ............................. 20
31– Automatic gear box.................. 20
32– Injectors: petrol....................... 10
Engine control, diesel.............. 15
33– Headlight washers................... 20
34– Engine control, diesel engine... 10
Engine control, petrol engine ... 10
35– Trailer device connection layout... 30
36– Fog lights, rear fog light .......... 5
37– Contact ................................... 10
38– Boot light, Central locking/
electric windows...................... 10
39– Hazard warning lights.............. 15
40– Horn........................................ 20
41– Lighter .................................... 15
42– Radio ...................................... 15
43– Engine control, petrol engine ... 10
Engine control, diesel engine .. 10
44– Heated seat ............................ 15



[LeonUser]

You have shorted something to earth

Layout of fuses
No. Component A1)
1– Heated washer jets,
heated mirrors......................... 10
2– Indicators ............................... 10
3– Lights ..................................... 5
4– Number plate lighting ............. 5
5– Comfort on and off .................. 7.5
6– Central locking ........................ 5
7– Reverse lights ......................... 10
8– Telephone............................... 5
9– ABS ........................................ 5
10– Petrol engine control unit ........ 10
11– Instrument panel..................... 5
12– Supply current, diagnosis,
telephone ............................... 7.5
13– Brake lights ............................ 10
14– Interior lighting, central locking/
electric windows...................... 10
Interior light ............................ 5
15– Instrument panel,
automatic gear box.................. 5
16– Magnetic clutch, electric
water pump............................. 10
17– Free ........................................ 7.5
18– Main beam, right ..................... 10
19– Main beam, left ....................... 10
20– Dipped beam, right ................. 10
21– Dipped beam, left.................... 10
22– Side light, right ....................... 5


No. Component A1)
23– Side light, left ......................... 5
24– Windscreen washer system,
pump ...................................... 20
25– Heating, air conditioning ......... 25
26– Heated rear window................. 20
27– Rear window wiper .................. 10
28– Fuel pump ............................... 15
29– Engine control, petrol engine ... 10
30– Sliding roof ............................. 20
31– Automatic gear box.................. 20
32– Injectors: petrol....................... 10
Engine control, diesel.............. 15
33– Headlight washers................... 20
34– Engine control, diesel engine... 10
Engine control, petrol engine ... 10
35– Trailer device connection layout... 30
36– Fog lights, rear fog light .......... 5
37– Contact ................................... 10
38– Boot light, Central locking/
electric windows...................... 10
39– Hazard warning lights.............. 15
40– Horn........................................ 20
41– Lighter .................................... 15
42– Radio ...................................... 15
43– Engine control, petrol engine ... 10
Engine control, diesel engine .. 10
44– Heated seat ............................ 15

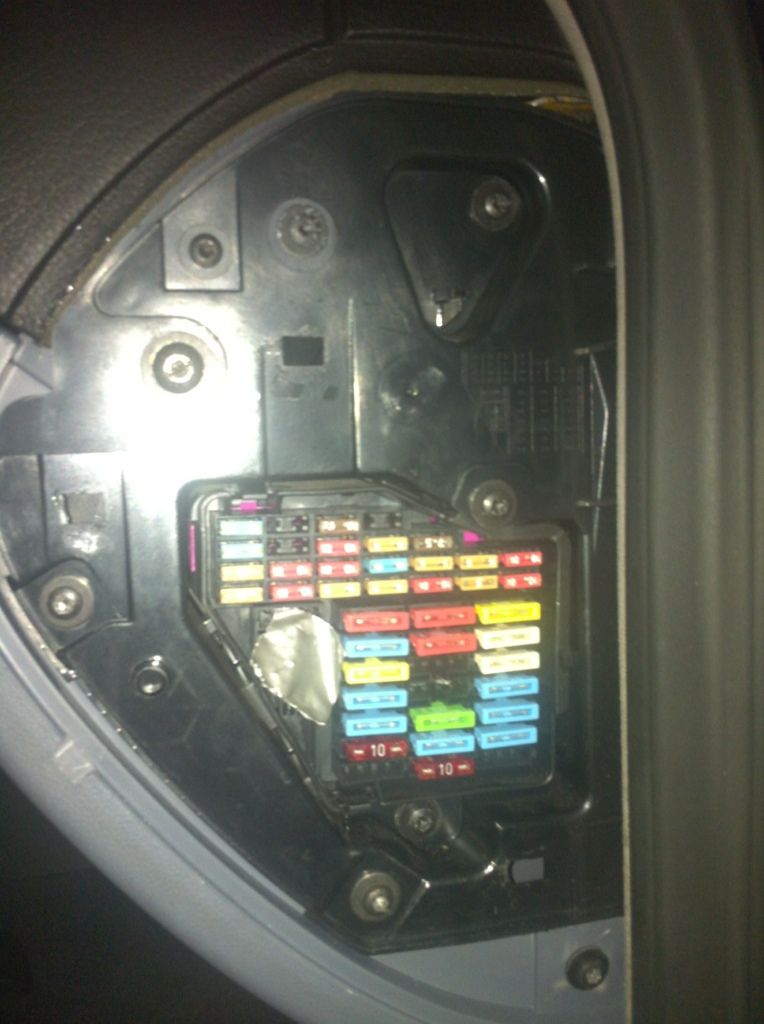

Thanks ill go outside ill have a look inamin and take a picture and upload on here, i think its blowing the 34.



[Engimaneer]

If a fuse blows when you replace it, it means the fault is still present (assuming the correct rating of fuse is used).
So if replacing the fuse does not work, you are likely to have a fault somewhere else. Most likely a short to earth somewhere.



[Engimaneer]

When you tried fitting the lamp that was not the right size, did you bend or open the fittings in any way in an attempt to fit it?
Could the fittings in the lamp holder be touching structure somewhere and causing a short to earth?



[LeonUser]

If a fuse blows when you replace it, it means the fault is still present (assuming the correct rating of fuse is used).
So if replacing the fuse does not work, you are likely to have a fault somewhere else. Most likely a short to earth somewhere.

When you tried fitting the lamp that was not the right size, did you bend or open the fittings in any way in an attempt to fit it?
Could the fittings in the lamp holder be touching structure somewhere and causing a short to earth?

I do remember the pins in the main interior light being bent when putting it in? could that be shorting the circuit out?

would i need replace it or just take it off and put back to original positions?

They are all the fuses i have in my fuse box aswell..



[LeonUser]

I found the problem was that the fuse had blown so i need go replace that one, also its number 34 on the fuse box that keeps blowing.

34– Engine control, diesel engine... 10 ? how can i stop this?



[LEE69]

If you remove the bulb does it blow still?
This is a weird one as that's the fuse for the ecu :/



[LeonUser]

If you remove the bulb does it blow still?
This is a weird one as that's the fuse for the ecu :/

No its been fine hasnt blown since.

and should i be worried that its my ecu one that keeps blowing? as my car has no probelm starting, running or anything else.



[LEE69]

It's weird... you must have done more damage somehow :/

If the car is running fine, no. Does the car start without the fuse in?



[LeonUser]

It's weird... you must have done more damage somehow :/

If the car is running fine, no. Does the car start without the fuse in?

Which fuse we talking about? number 34?



[LEE69]

Yeah seeing as that's the one that keeps blowing



[LeonUser]

One sec ill go see if it starts without it in there now.



[LeonUser]

The car starts with and without the fuse in matey, so what now?



[LEE69]

Hmmm obviously that fuse doesn't do what 34 is supposed to do



[LeonUser]

But its a 10amp fuse which is in there ill check it after i get back from driving it.
