question on cockpit, I have set on it temperature monitor control.
I have three icons, one at the bottom is the OIL, the middle one is water, but I do not know what is the one on top
I've been looking for it on PDF manual with no luck, I tried to replicate it with paint see below, but I'm unsure what is it

is breaks temperature or gear or what ?

moreover, another one, to stop inbound air-flow, I have to hit this icon on infotainment display.. but, not sure if its a lost-in-translation matter on manual... not clear when is OPEN and let in the air... I see an A on it but unsure if is open:
so, when ?
ORANGE ?
or when is WHITE ?

any comments from your side is always appreciated ?
thanks



[SnirS]

I solved the issue of air circulation by asking the virtual assistant to turn off the circulation and turn it on and saw what happens to the sign accordingly. I'm sure there's a smarter way but this was mine

For the first one, I'm assuming it's the gear temperature.

Sent from my iPhone using Tapatalk



[Marck]

yeah... did the same today, ended up that ORANGE without A means OPEN
WHITE with an A its closed

for temperature one, looks like you're correct, due after 25 kilometers today in E mode only, it was the only one that marked some degrees, thus must be surely the DSG, pity that manual do not show it at all



[Deleted member 131219]

yeah... did the same today, ended up that ORANGE without A means OPEN
WHITE with an A its closed

for temperature one, looks like you're correct, due after 25 kilometers today in E mode only, it was the only one that marked some degrees, thus must be surely the DSG, pity that manual do not show it at all

Yes, the three temperatures on display are engine coolant, engine oil and gearbox fluid.



[Marck]

yeah... did the same today, ended up that ORANGE without A means OPEN
WHITE with an A its closed

for temperature one, looks like you're correct, due after 25 kilometers today in E mode only, it was the only one that marked some degrees, thus must be surely the DSG, pity that manual do not show it at all

I have to amend this, this morning I found correct setting area

on air conditioning setup, we have an option for air recirculation, it may be automatic and when air conditioner is ON it may also be set with three levels
- Delicate
- Medium
- Intense

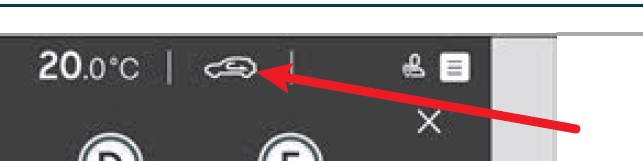

thus, this icon below can be shown in three ways:

1: White --> OPEN
2: White with capital A --> Open/Automatic Handled by the system (see above where to set this)
3: Orange --> Closed

all three points verified, this morning was so cold, then on option #1 I'm positive air was getting thru from outside
