N249 - Improvement (not deletion)?

[BarelyHominid]

There are millions of posts about deleting the N249 system, but very few on how to improve or tidy it up (as far as I can find).

My LCR currently bypasses it as I chase down all the other intake-related leaks. I will be rebuilding it shortly with silicone hosing, in the stock location, with the intention of tidying up that sprawling mess of hoses.

Has anyone else bothered? How were the pipes routed to make it look neater?



[Connor H]

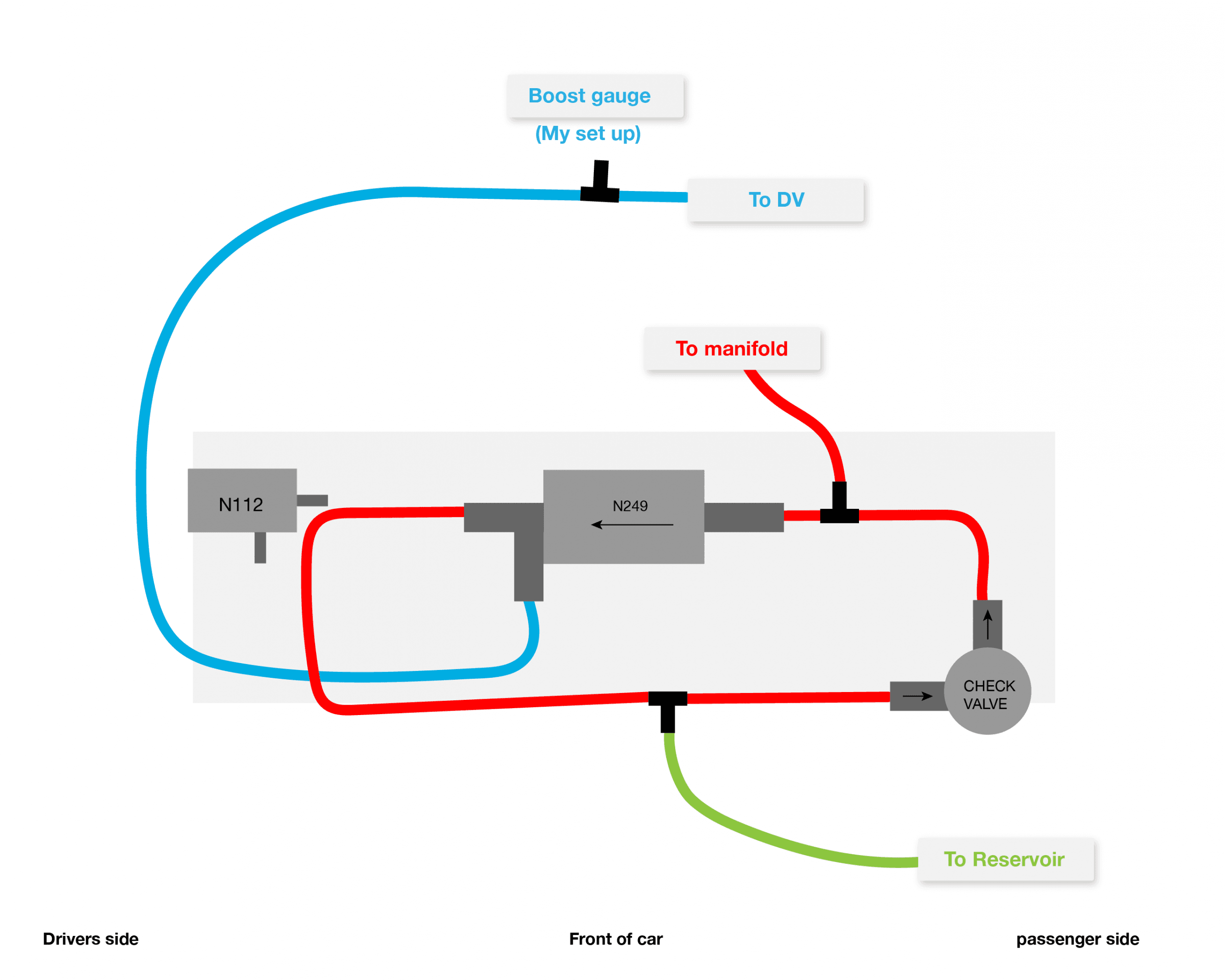

Ive done it as i preferred the car with it installed, its pretty simple and works. got it mapped like it no issue. heres a diagram i made at the time. you can organise it how you like but this is pretty much where stuff needs to go.

The FPR has its own line from the manifold so not pictured.



[BarelyHominid]

Found your diagram looking through previous threads which is what gave me the idea of simplifying the circuit.

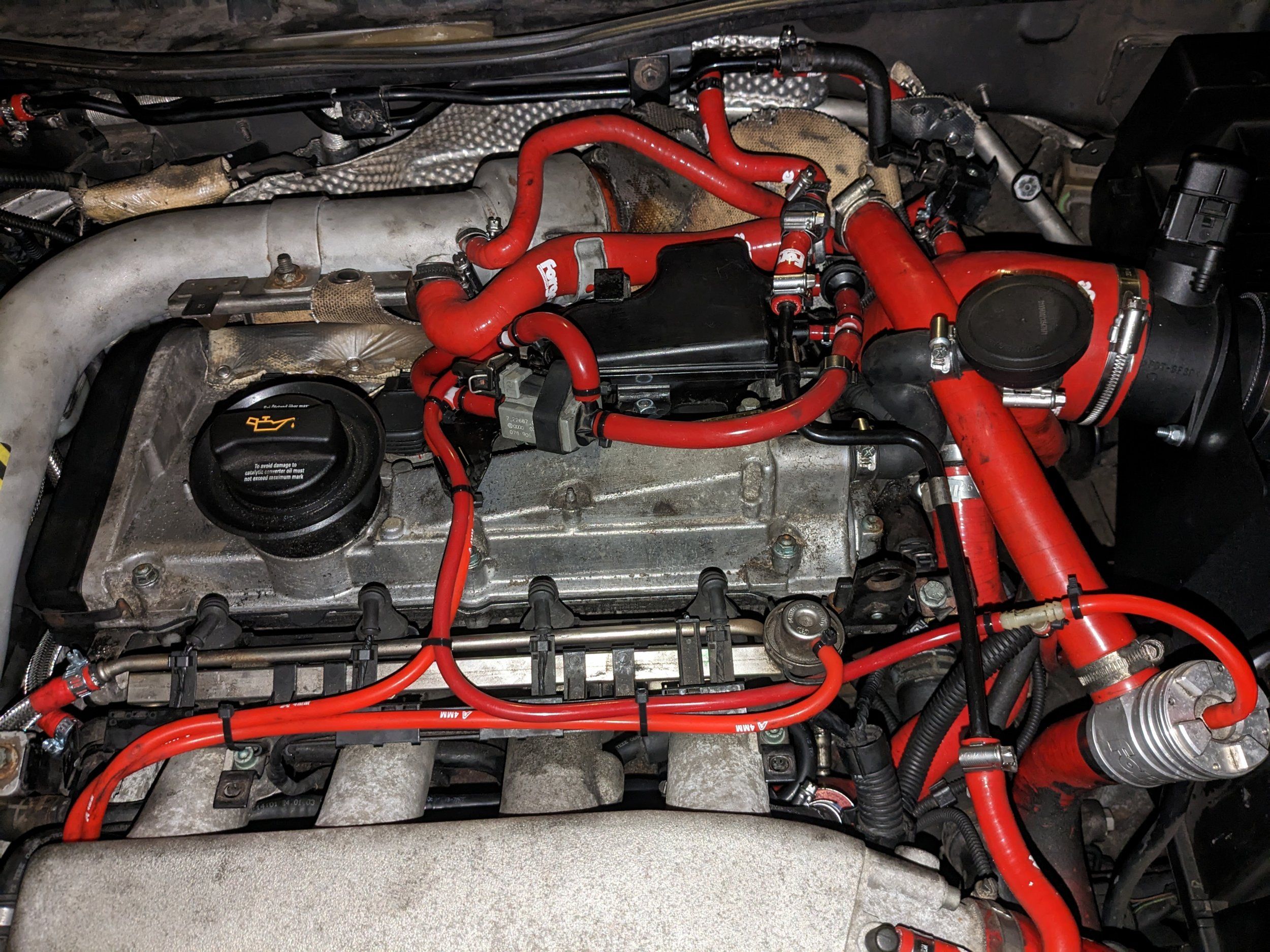

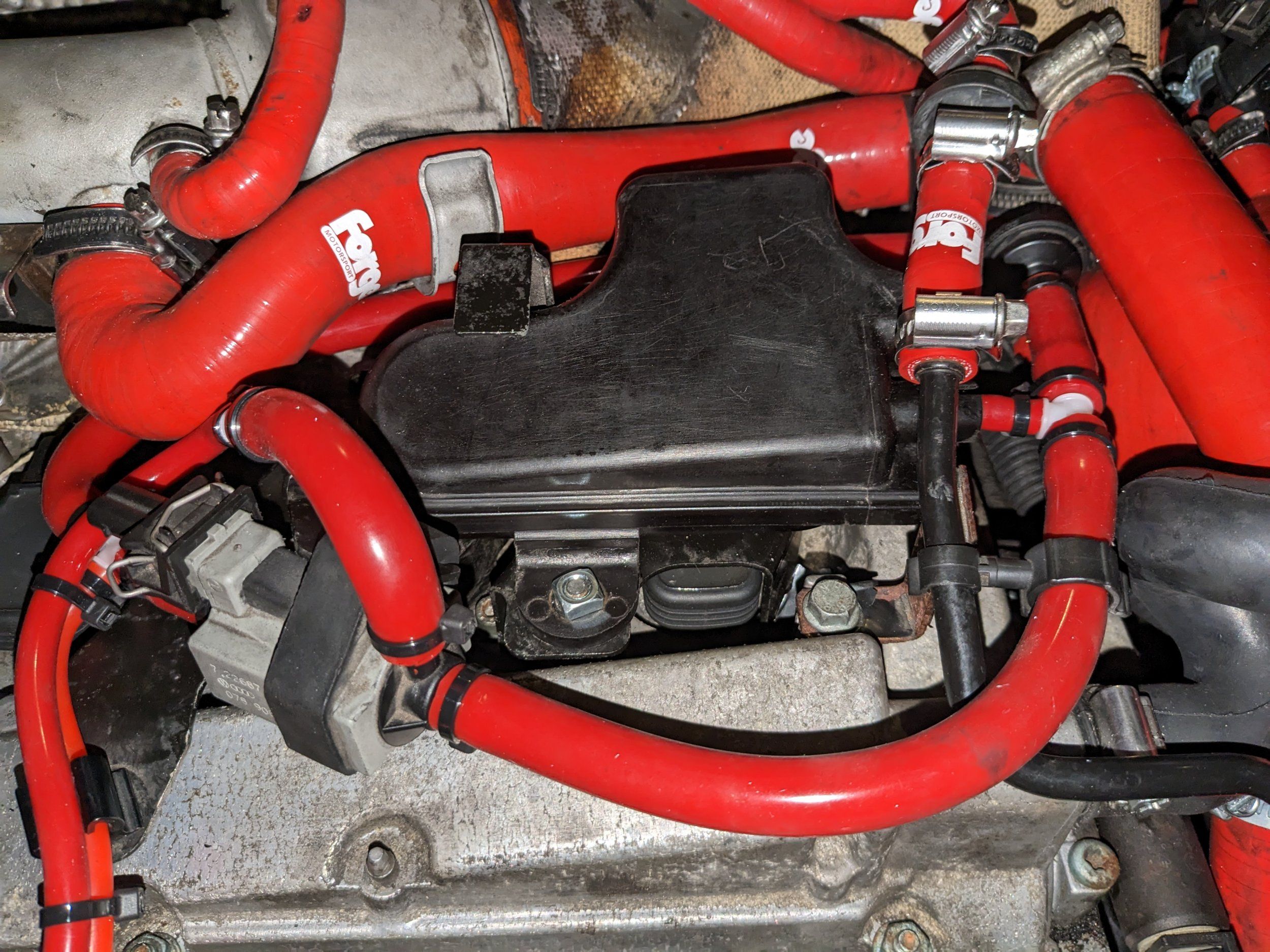

So much less messy now and actually works properly, which was more than could be said for the old split-ridden tangle of rubber hoses.



[Connor H]

Glad it helped someone! its comforting knowing the system is not a complete liability.
