wireless charger retrofit for 2017-
- Thread starter mcspook
- Start date
East yorkshire retrofits sells the complete kit needed for the retrofit.
eastyorkshireretrofits.co.uk
As UK are no longer part of EU, you might be able to buy ex VAT.
Wireless Charging retrofit
Our wireless charging retrofit is available for Seat Leon mk3 facelift models only (2017-) The kit includes all the parts and wiring necessary to fit wireless charging and will result in a factory like install.
eastyorkshireretrofits.co.uk
As UK are no longer part of EU, you might be able to buy ex VAT.
So after some time in PETKA I found the parts that I need.

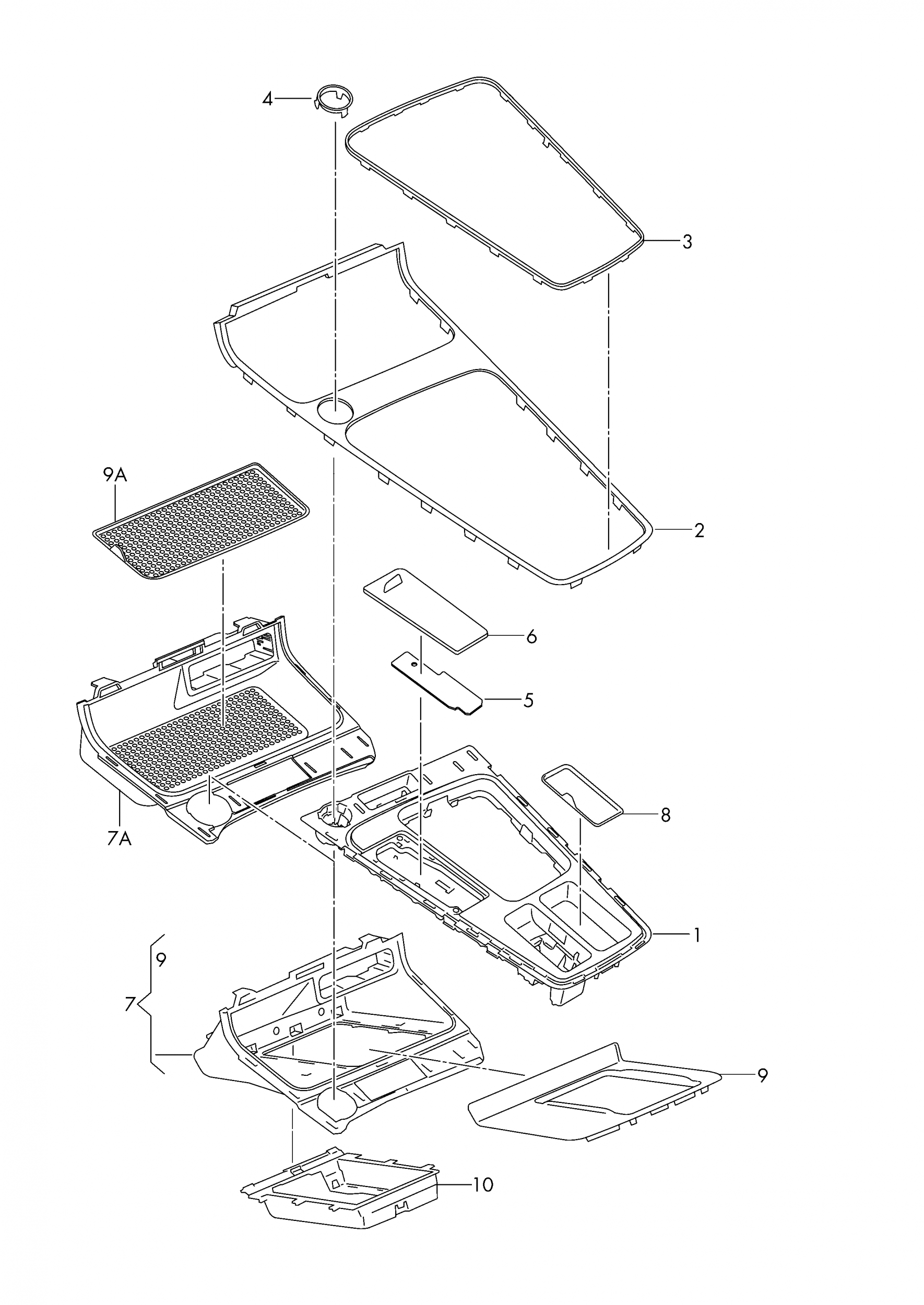

For the drawer insert: LHD 5f1 857 974a QB(satin black) (7)
RHD 5f2 857 974a QB(satin black)
For the retaining frame: 5f1 864 089 (10)
For the rubber mat: 5f1 863 330b (9)

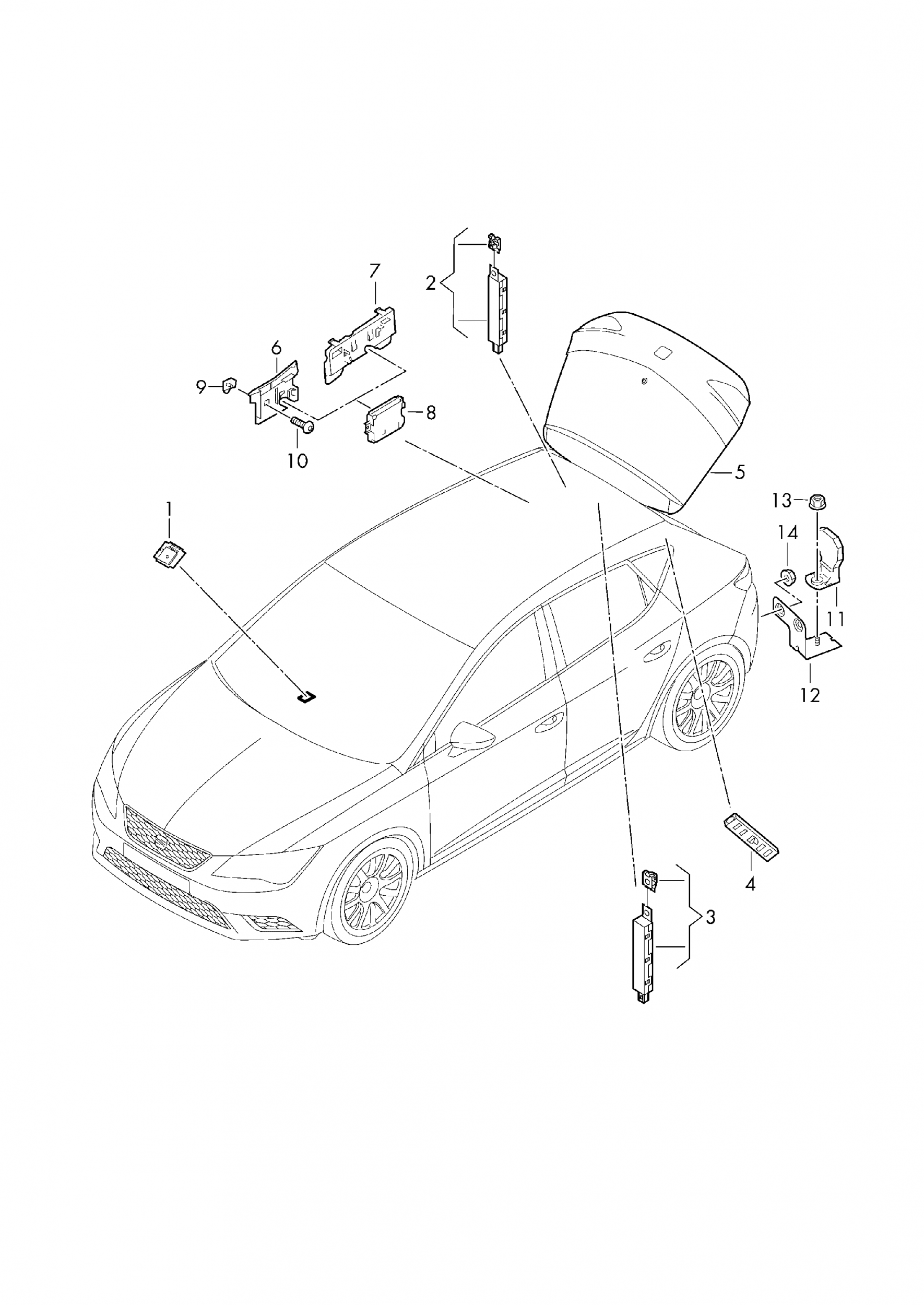

For the wireless charger- antenna booster: 81A 035 502
for the charger you will need the 6-pin connector: 4b0 971 978C
You also can boost the signal but I didn't look for this. but if you need it you will need also a 2way signal amplifier + the antenna + the cables + the brackets and bolts for it and the mounting place is at the rear of the car so...
For the drawer insert: LHD 5f1 857 974a QB(satin black) (7)
RHD 5f2 857 974a QB(satin black)
For the retaining frame: 5f1 864 089 (10)
For the rubber mat: 5f1 863 330b (9)
For the wireless charger- antenna booster: 81A 035 502
for the charger you will need the 6-pin connector: 4b0 971 978C
You also can boost the signal but I didn't look for this. but if you need it you will need also a 2way signal amplifier + the antenna + the cables + the brackets and bolts for it and the mounting place is at the rear of the car so...
Also found a tutorial in the Spanish forum if anyone is interested. https://www.clubseatleon.net/viewtopic.php?t=120263
East Yorkshire Retrofits
Forum Sponsor
We wouldn't charge VAT on the sale, however it may be charged at customs on import. The price on the website is supplied and fitted - You'd need to contact us for a kit. Bare in mind it requires plastic weldingEast yorkshire retrofits sells the complete kit needed for the retrofit.
Wireless Charging retrofit
Our wireless charging retrofit is available for Seat Leon mk3 facelift models only (2017-) The kit includes all the parts and wiring necessary to fit wireless charging and will result in a factory like install.
As UK are no longer part of EU, you might be able to buy ex VAT.
Well. After some time I pulled the trigger and purchased the console as a whole from ebay and with a very quick and simple long coding (5f byte 15 bite 0 and 5) i have wireless charging. The only downside is that I didn't find a glossy one, so i had to put vinyl and it doesn't look as smooth as the original.
There is also this tutorial if someone else is looking to retrofit.
www.drive2.ru
Edit: in long coding if you install only the charger, activate only bit 5. I had a fault for baseplate and i had to uncheck bit 0 in 5f byte 15
There is also this tutorial if someone else is looking to retrofit.
Докидываем опции: установка оригинальной беспроводной зарядки
Доброго времени, Ещё в самом начале я рассказывал, что моя машина сошла с конвеера практически со всеми возможными опциями. Однако все таки парочка галочек в конфигураторе отсутствует, но это дело по…
www.drive2.ru
Edit: in long coding if you install only the charger, activate only bit 5. I had a fault for baseplate and i had to uncheck bit 0 in 5f byte 15
Last edited:
