Ibiza Cupra 2016 - Headunit Change

duckpond85

Active Member
May 12, 2022
5
2
Hi all,

Have a 2016 Ibiza Cupra 6P which has the small screen without maps, something ive lived with for a few years but decided i need to change it out. Getting it swapped to a 6.5" or 8" MIB II isnt an option as i am in Ireland, nobody here does the conversion unfortunately so that leaves me only with after market.

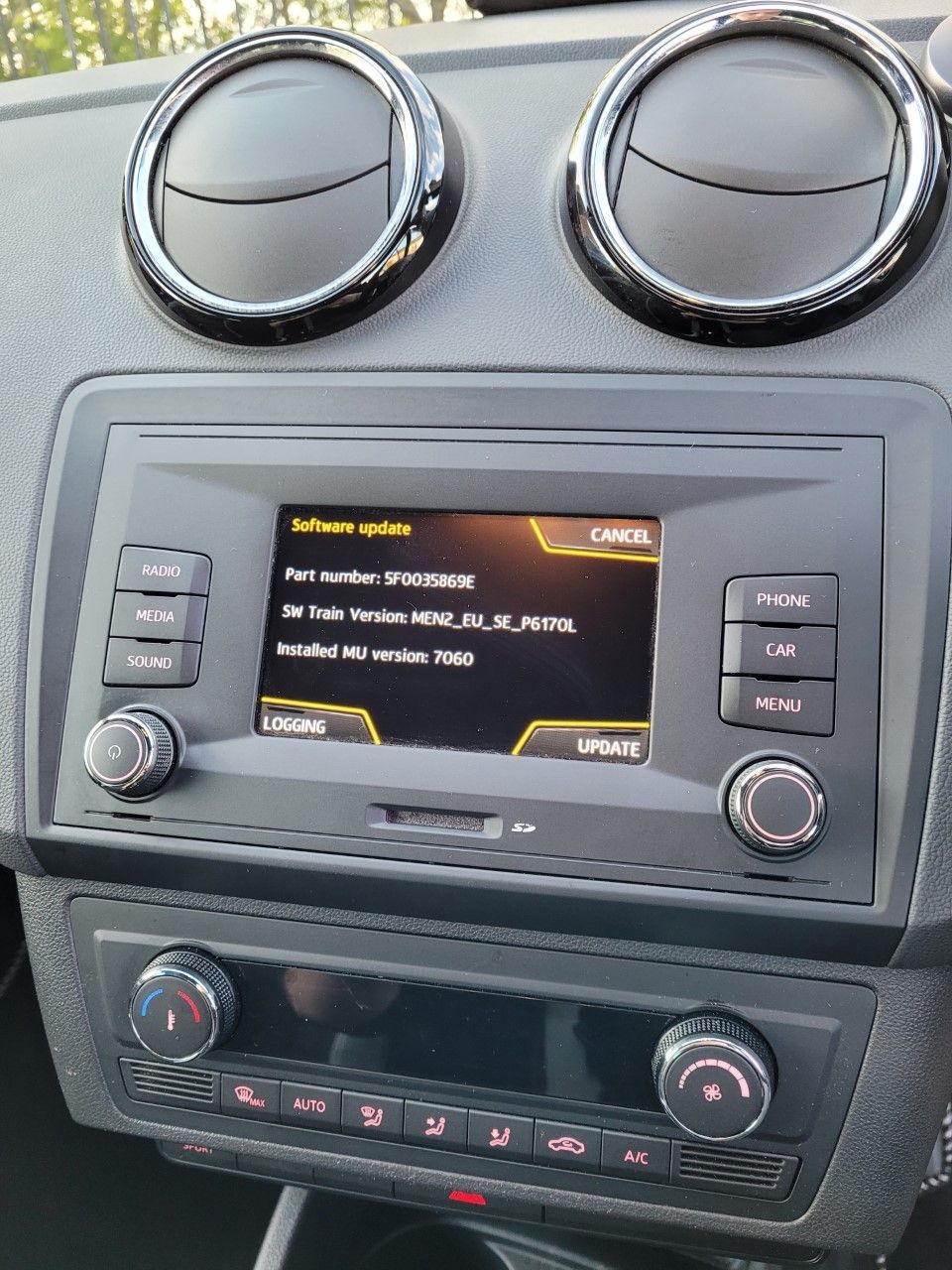

My headunit is as per this image. Its the MIB II Entry Plus model, 5" screen

Would anyone be able to confirm i could successfully install the following ?

1) Alpine ilx-705DM
2) https://incartec.co.uk/Seat/Ibiza-M...e-Din/Alpine-Double-Din/Seat-Ibiza-MIB2-16-17
- Double Fakra to Male DIN aerial antenna adapter cable (With 12v phantom power)
- Seat Ibiza (16-21) Leon (12-15) Arona (17-21) Steering Wheel audio Control Infoadapter
- https://incartec.co.uk/product/Seat...in-radio-fascia-adapter-panel-Deckless-50-687


Last edited:

duckpond85

Active Member
May 12, 2022
5
2
since nobody seems to be able to shed any light and I was informed also that a standard double DIN would not fit due to non standard din cutout, i decided to still truck on and and try make something work, i don't have all the parts yet, but i will update here in-case it might help somebody else out

- Headunit arriving next week (Alpine Halo ILX-905D) - Not entirely sure it will fit, but quietly confident.

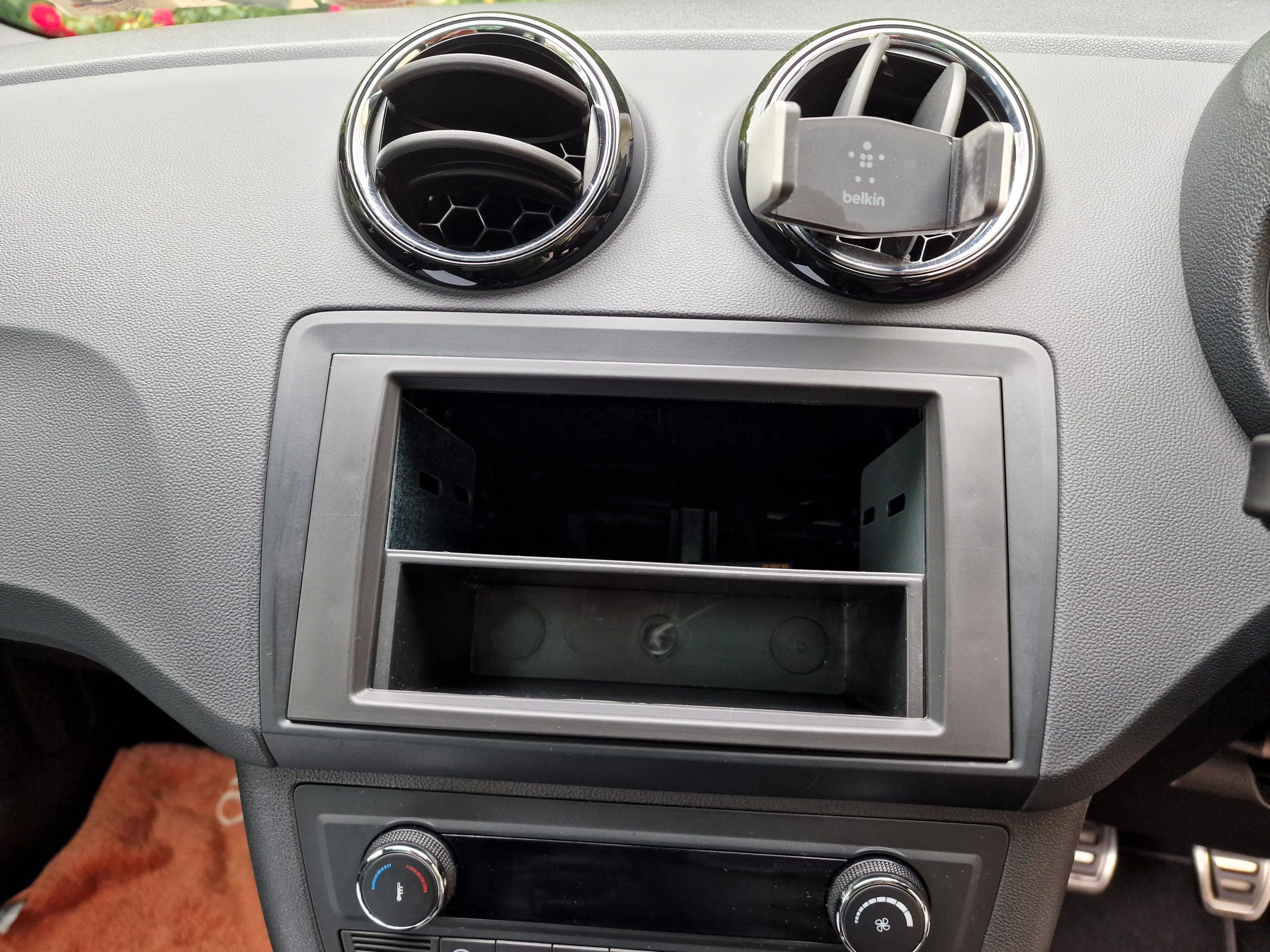

- Confirmed a standard double din headunit wont fit, once you remove OEM radio you can see that the top half of cutout will fit a standard single din, however lower half has plastic bits inlaid that would block the same going in there.

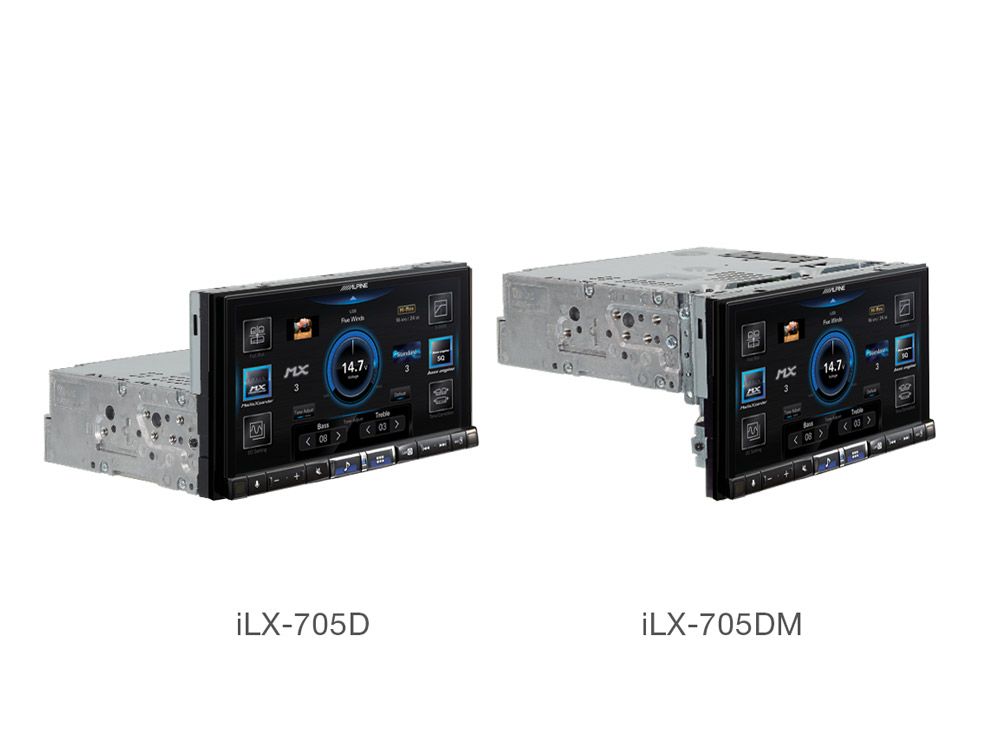

- I think the Alpine 705DM would also fit, as you can see from image above, the top part has the single DIN, which should fit no issues, another option might be an Alpine 690D which is full sized double DIN however its depth is 60mm, so i believe this would also fit. However, the 705D model as you can see from image with the DIN at the bottom, would not fit the cutout in car, unless you cut out plastic, however not sure this would work.
- Not sure how I will secure the 905D as i dont have a DIN cage, i'll see when it arrives if it can be secured or if i need to try my luck with a random one off amazon
- Image with paper and red outline is size difference between a 7" screen which would be flush, vs the 905D which protrudes out . ie floating screen

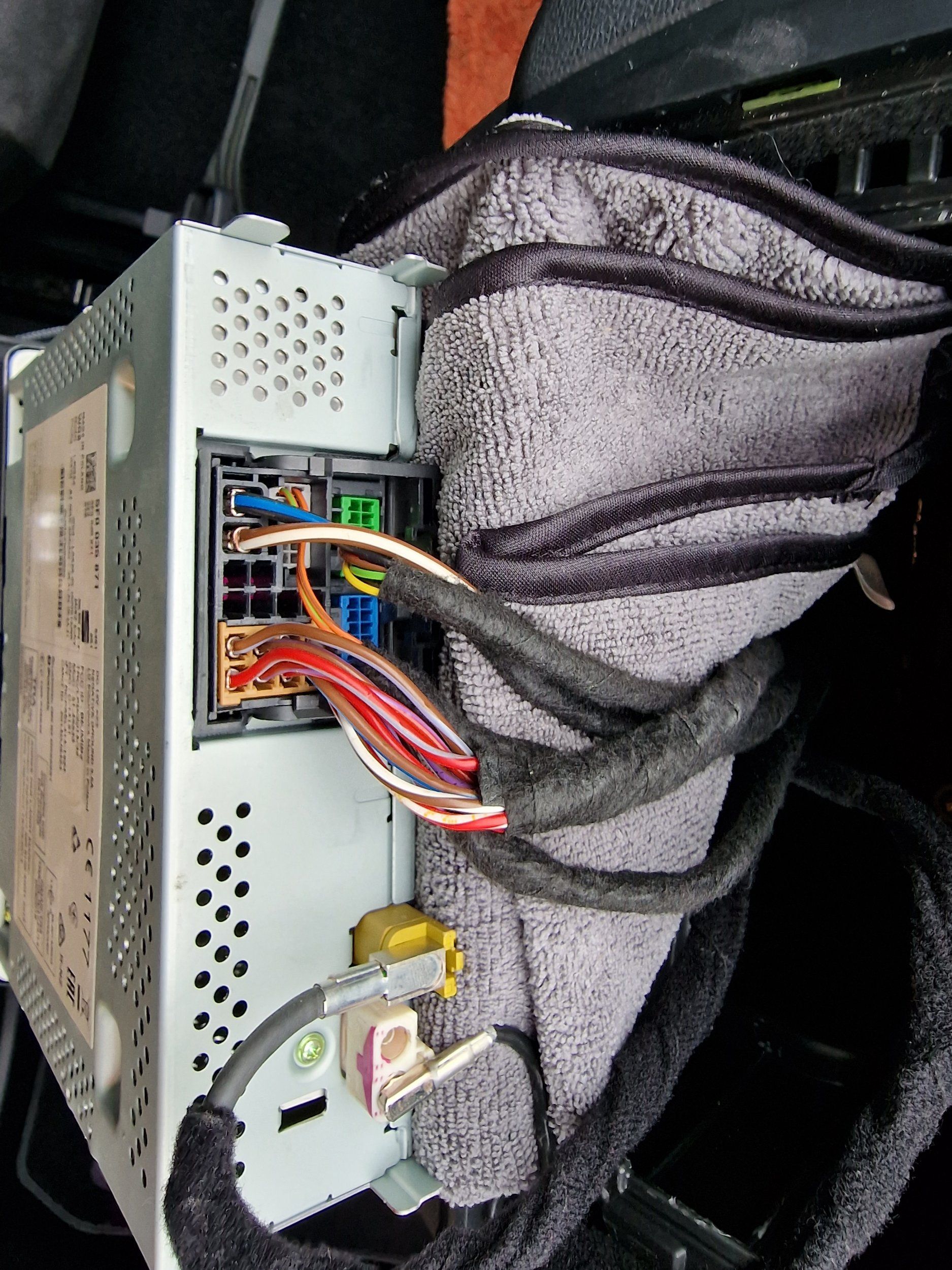

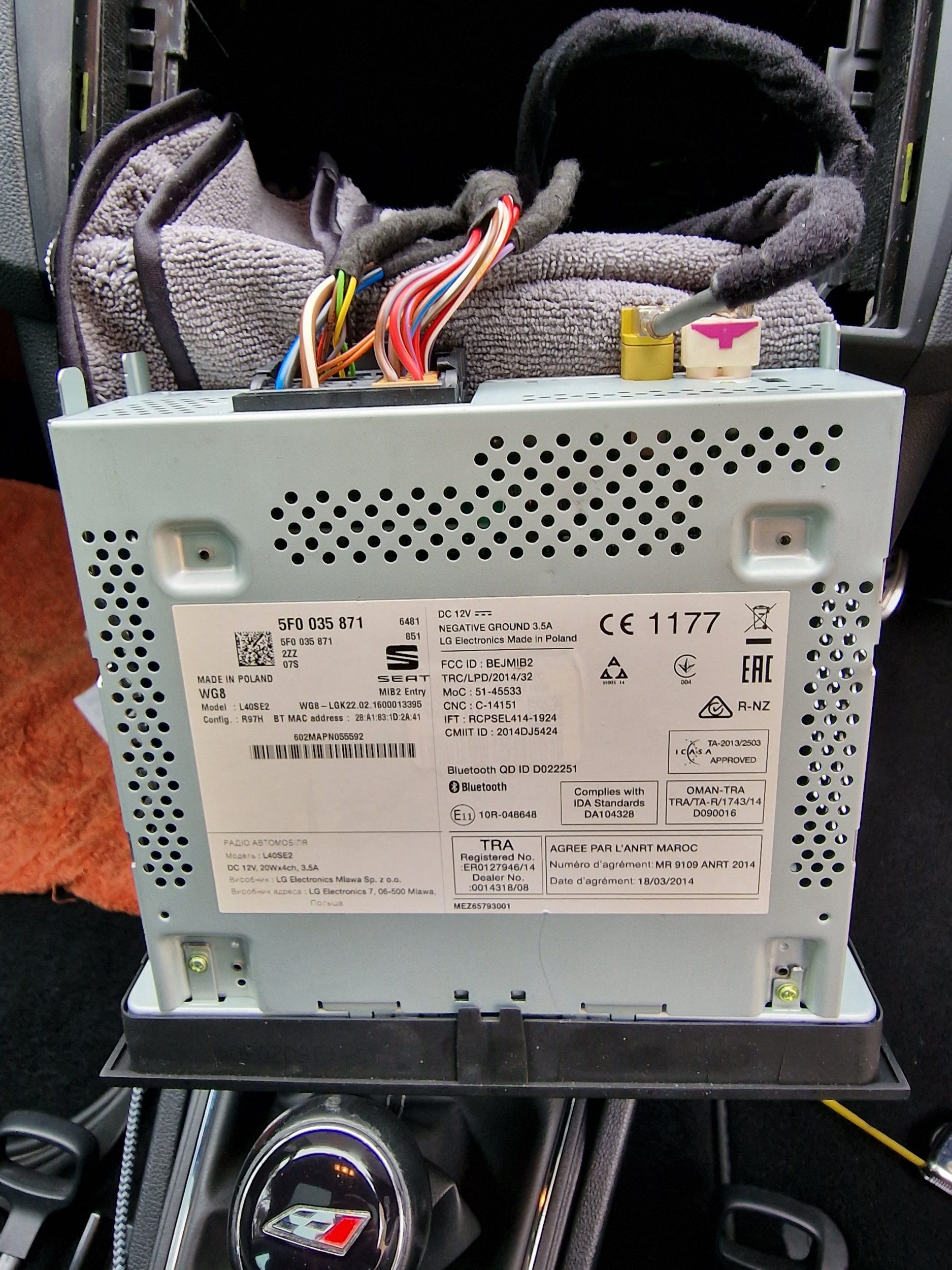

OEM Radio: MIB II Entry Plus model, 5" screen -> 5F0035871
Chassis Size (W x H x D) mm: 180 x 50 x 160 mm
Display Size (W x H x D) mm: 220 x 120 x 20 mm

Alpine Halo ILX-905D:
Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
Display Size (W x H x D) mm: 232 x 151 x 55 mm

Parts:
Headunit: https://www.alpine.co.uk/p/Products/head-units/ilx-f905d

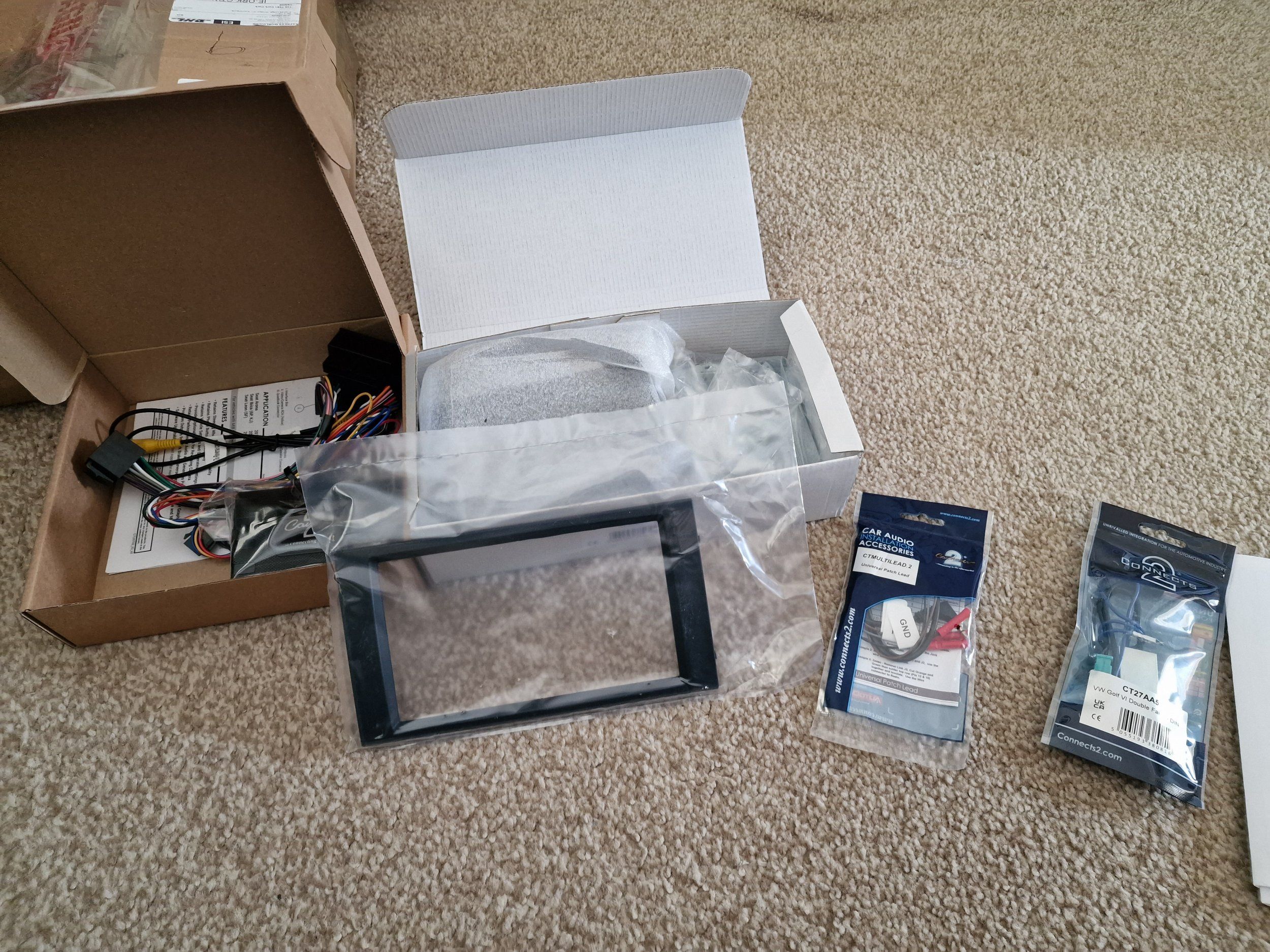

Installation Kit/Steering Controls Kit: Connects2 CTKST12 -> (consists of CT23ST22 and CTUST02, CTMULTILEAD.2 and CT27AA5 Double Fakra)

To be updated...


Attachments

  • 20220524_182654.jpg
    676.5 KB · Views: 53
  • 20220524_182701.jpg
    754.1 KB · Views: 55
  • 20220616_130435.jpg
    933.4 KB · Views: 53
  • 20220619_153629.jpg
    797.1 KB · Views: 51
  • 20220619_153705.jpg
    712.6 KB · Views: 56
Last edited:
  • Like
Reactions: meshgrid

duckpond85

Active Member
May 12, 2022
5
2

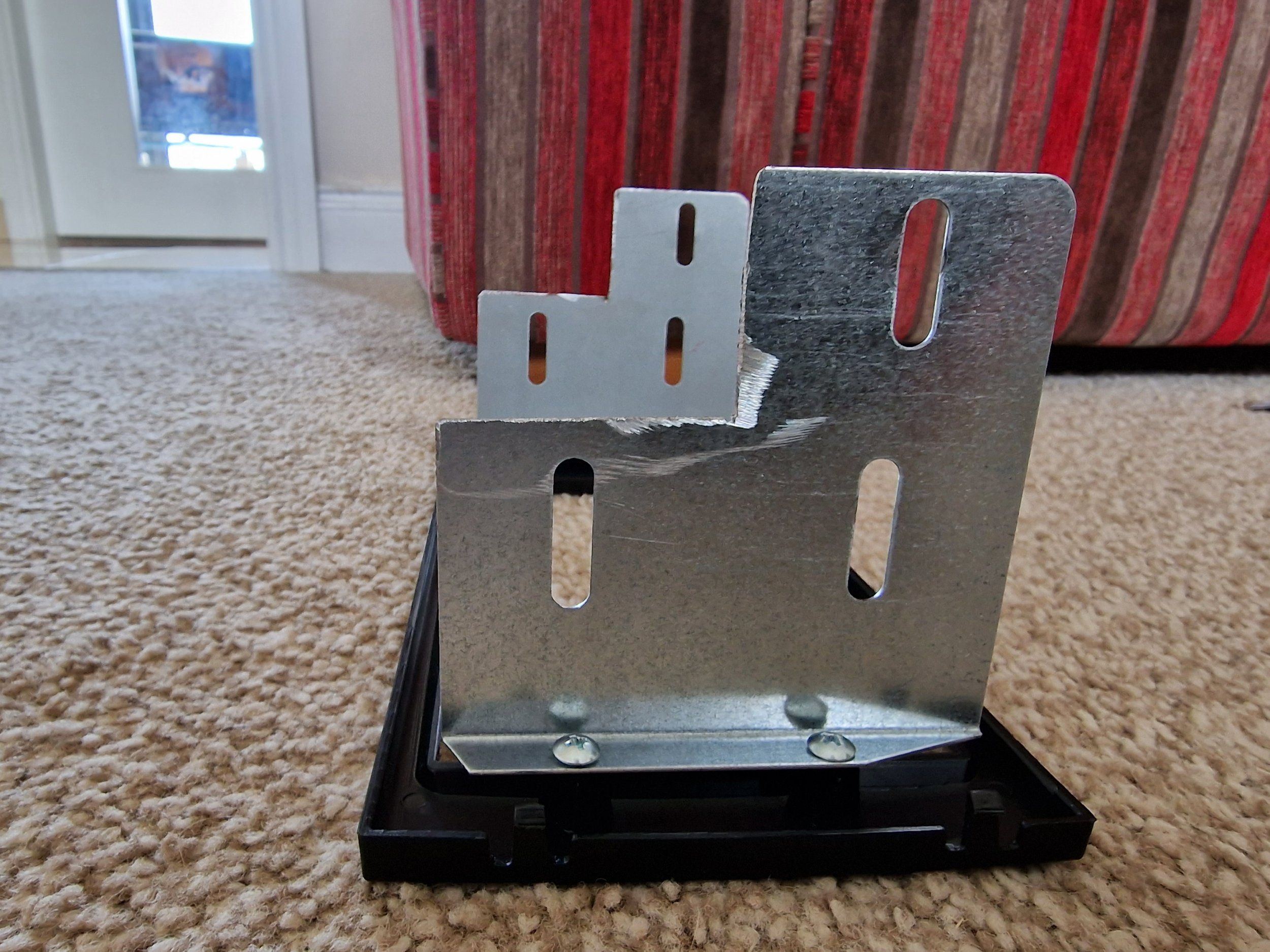

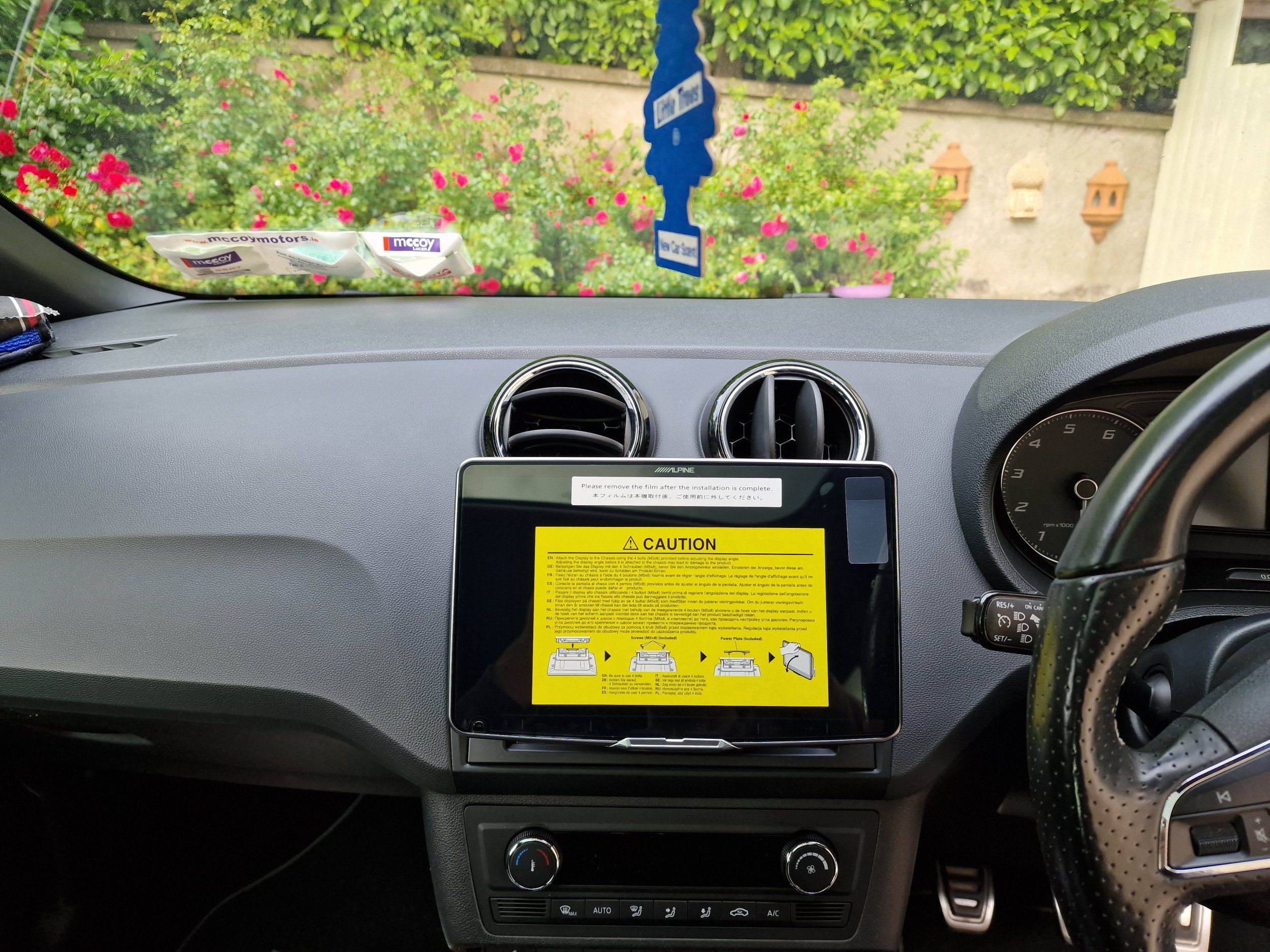

so test fit seems to be ok

will update further, likely next week


Attachments

  • 20220628_190727.jpg
    608.4 KB · Views: 68
  • 20220628_191618.jpg
    786.7 KB · Views: 65
Last edited:

duckpond85

Active Member
May 12, 2022
5
2
OK so all is working, i did have an issue with radio reception, and it wasn't down to the usual 12v blue antenna wire not being connected, it was but i had wrong aerial adapter.

I had the CT27AA56 (which fitted without issue), however it gave extremely poor reception so needed the CT27AA14 which instantly fixed the issue. So i picked this up at Halfords.

Connects2 offers two different kits for the 2016 Seat Ibiza Cupra: (the only difference being either aerial adapter CT27AA56 or CT27AA14
Kit 1 - CTKST12 (i got this kit which included the CT27AA56 which proved not to work)
Kit 2 - CTKST10 (this one comes with CT27AA14 as part of the package)

Only other thing to note is, the fascia isn't clipping fully in place, its sitting nearly flush but wont clip, and i dont think its down to space issues. Will need to look into that further and try figure something out, other than this, its all good. Steering wheel controls work, android auto, phone, etc etc


Attachments

  • 20220706_154413.jpg
    666.4 KB · Views: 61
Last edited:
  • Like
Reactions: meshgrid
Aug 16, 2020
2
1
Can't help you on this one but good to know there's more of the cupra 1.8 owners in Ireland on this. Last time I checked there's less than 10 of us in the country! (And probably only 2 on the forum)

  • Like
Reactions: duckpond85
