Subframe Torque Specs

[Smyg]

Hi,

I would really need the Torque specs in "Nm" for the following bolts and stretch bolts:

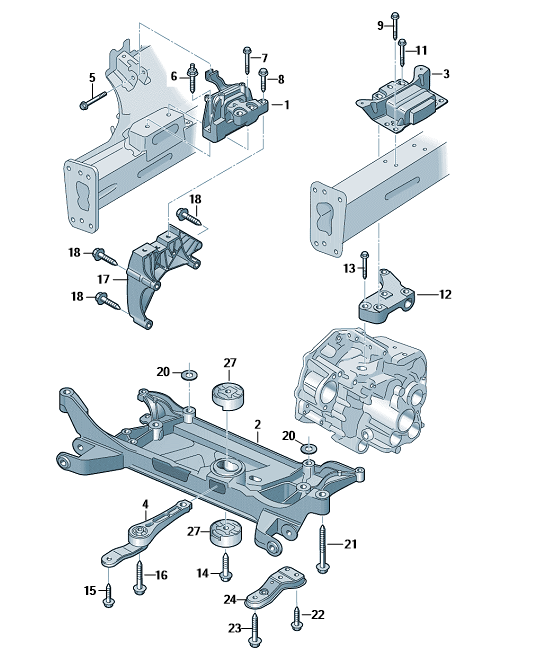

Number 21, 22 and 23 bolts (picture below). I think it's 70Nm + 180 degree

Number 14 (dog bone 135Nm?) and also number 15 and 16 please.

Thanks in advance!



[black_sheep]

If you look at the Mk3 Guides section at the top of the Mk3 forum, @paddy6789 has a thread with all of the workshop manuals.

https://forums.seatcupra.net/index.php?threads/leon-mk3-official-seat-workshop-manuals-link.442353/

You need to look in the Running Gear, Axles, Steering document.
