Mk3 Leon st subwoofer wiring

Lozzy15

Mods mods mods
Staff member
Moderator
Mar 24, 2015
361
197
Ilkeston, Derbyshire
Here you go. Any questions just ask.

EDIT: In the video I mention the black cable in the footwell, I meant the red one. That's the one I used for the perm live feed as per the picture I posted earlier in the thread.

Last edited:
  • Like
Reactions: Twed

Phil-osopher10

Active Member
Sep 23, 2019
15
7
That was a fantastic help! I ran it the way you have and all seems to be working! I'll be able to give it a proper test run over the next week to see what it's like.

Awkward enough to install, but a few hours has you done!


Phil-osopher10

Active Member
Sep 23, 2019
15
7
So I haven't been able to hear as well as I would have liked this week, with a cold and all. Clearing up now though.

I generally listen to rock music, and would rarely have dance tunes on in the car, so take this with a pinch of salt. I also play bass, hence wanting a little more than the stock speakers, though they're fairly decent.

Pros
Adds subtle depth to the system
Makes it easier to hear the bass when driving at motorway speeds
Does what it's supposed to do
£100 - fairly cheap
Easy enough to install (once you get a little help)

Cons
One puts the sound off balance, I hear it all from the passengers seat (earth lead not very long, wouldn't reach to the drivers side, I'm not sure if there are any earth points on the drivers side)
Clarity isn't the best, it adds depth but can be a little muddled when complicated bass lines come in.

Improvements
2 of them, I think this would seriously improve the sound and be greater than the sum of the parts.
Maybe upgrade the speaker to say the focal ibis, which would be a little clearer I think.

All in all, I'm very pleased with it and would do it again.


Lozzy15

Mods mods mods
Staff member
Moderator
Mar 24, 2015
361
197
Ilkeston, Derbyshire
So I haven't been able to hear as well as I would have liked this week, with a cold and all. Clearing up now though.

I generally listen to rock music, and would rarely have dance tunes on in the car, so take this with a pinch of salt. I also play bass, hence wanting a little more than the stock speakers, though they're fairly decent.

Pros
Adds subtle depth to the system
Makes it easier to hear the bass when driving at motorway speeds
Does what it's supposed to do
£100 - fairly cheap
Easy enough to install (once you get a little help)

Cons
One puts the sound off balance, I hear it all from the passengers seat (earth lead not very long, wouldn't reach to the drivers side, I'm not sure if there are any earth points on the drivers side)
Clarity isn't the best, it adds depth but can be a little muddled when complicated bass lines come in.

Improvements
2 of them, I think this would seriously improve the sound and be greater than the sum of the parts.
Maybe upgrade the speaker to say the focal ibis, which would be a little clearer I think.

All in all, I'm very pleased with it and would do it again.
I was looking at maybe upgrading the speakers in the doors. I did also think to fit 2 of them should cash permit at some point. As you said it does add depth to the system.


Wastedagen

Active Member
Aug 3, 2017
411
79
Milton keynes
2 of them, I think this would seriously improve the sound and be greater than the sum of the parts.
Maybe upgrade the speaker to say the focal ibis, which would be a little clearer I think.

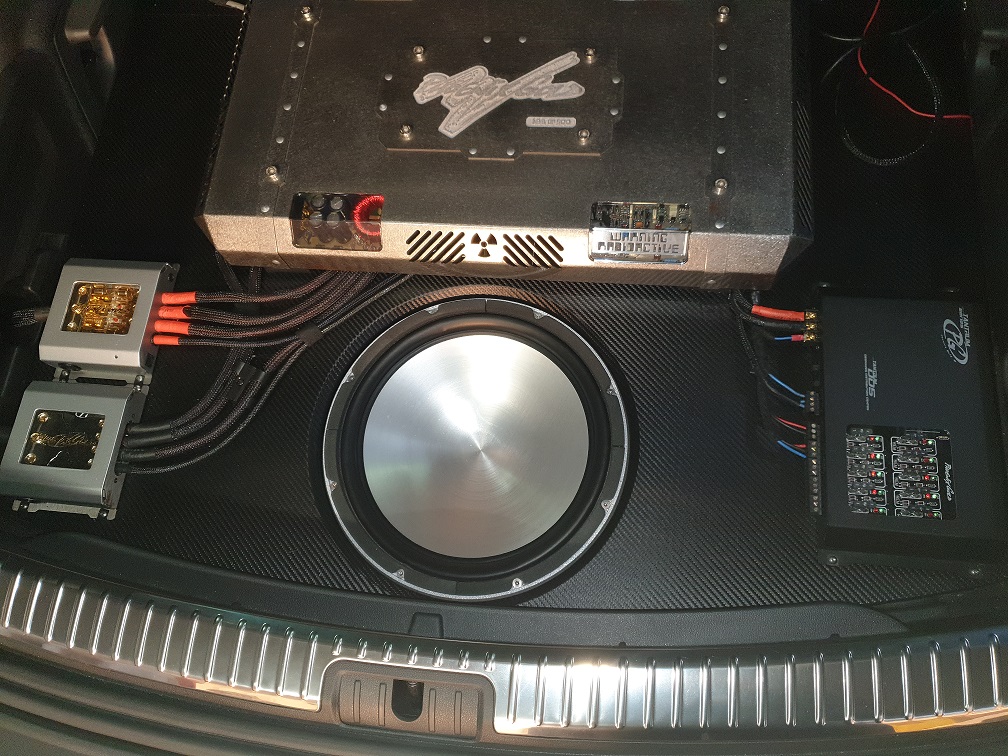

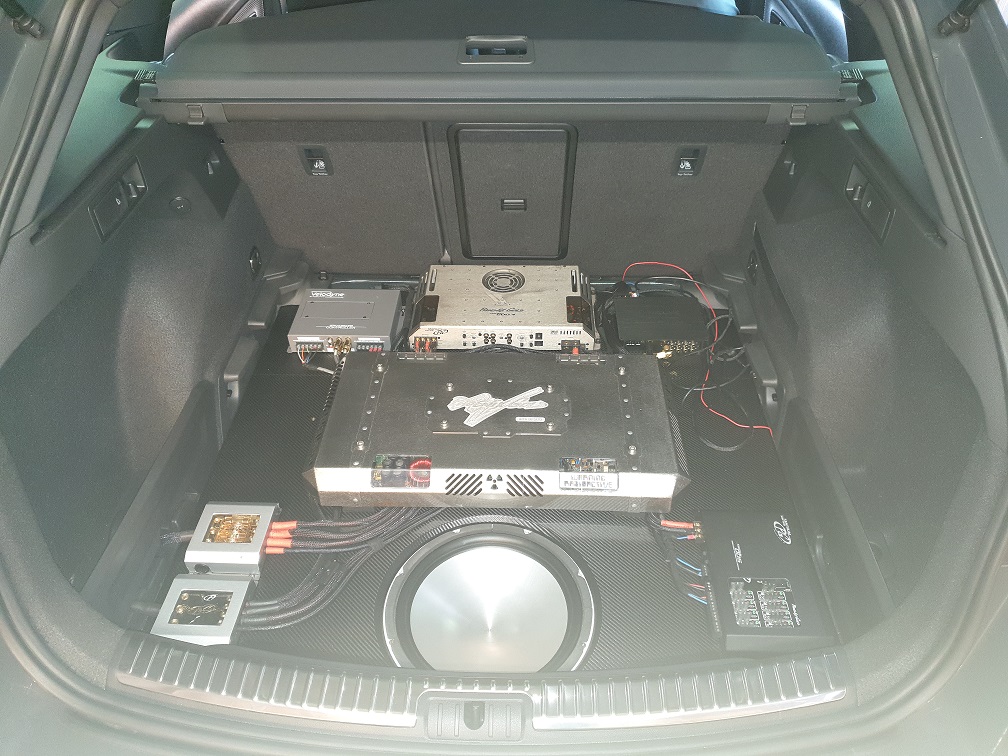

Exactly what I thought so that's what I did. And it made a big difference in spreading the bass around the inside of the car.



Also mine sounds better 180° out of phase. Yours may differ......

  • Like
Reactions: Lozzy15

Phil-osopher10

Active Member
Sep 23, 2019
15
7
I was looking at maybe upgrading the speakers in the doors. I did also think to fit 2 of them should cash permit at some point. As you said it does add depth to the system.
When I was looking about, I think focal had a specific VW golf set you could buy, which would be a straight swap.

Though the Leon speakers are decent imo

  • Like
Reactions: Lozzy15

Lozzy15

Mods mods mods
Staff member
Moderator
Mar 24, 2015
361
197
Ilkeston, Derbyshire
Exactly what I thought so that's what I did. And it made a big difference in spreading the bass around the inside of the car.



Also mine sounds better 180° out of phase. Yours may differ......
I have tried it 180 out on mine but it sounds better in phase for me.

When I was looking about, I think focal had a specific VW golf set you could buy, which would be a straight swap.

Though the Leon speakers are decent imo
Yea they are fairly good for OEM none Seat Sound spec, however I'm always looking for upgrades :whistle:

  • Like
Reactions: Wastedagen

Walone

Active Member
Feb 10, 2016
874
168
Near Heathrow
According to the wiring diagram for my car (2016MY with MIB2 High - 8 speakers) the wiring is different to 'Wastedagen's' diagram,
the rear/right speaker bass & treble are connected to pins 1 & 5 on block A, the rear/left speaker bass & treble to pins 4 & 8, the front/right treble to pins 2 & 6, the front/left treble to pins 3 & 7, the front/right bass to pins 9 & 13 on block D and the front/left bass speaker to pins 10 & 14.
Looking at the plug on my car this looks correct as the wires going to pins 2, 3, 6 and 7 (front treble spkrs) are thinner gauge than the other pins.
When Seat Sound is activated pins 9 & 13 are connected to the subwoofer and pins 10 & 14 to the centre dash speaker, the wires that were on those pins for the front left & right speakers are connected to the corresponding pins used for the front tweeters.


Phil-osopher10

Active Member
Sep 23, 2019
15
7
Just put of curiosity, I assume I can just extend the earth cable? It's not long enough to reach below drivers seat. Would I just get a 14 guage wire and connect the two with and cover with electric tape/ heat shrink?


MH0

Active Member
Aug 7, 2019
37
6
Quick Question. I have a Sony XS-NW1202E - subwoofer 1800w and a Pioneer 1600W amp. What HI-LOW converter would I need. Also, do you guys know what the prices of these are?

Many thanks

Apr 28, 2019
8
1
Sorry to bring up an old thread but does anyone know if it would be ok to put a quad lock extension harness between the media unit and the existing harness to splice the sub in to the speaker cables?
Thinking it would be easier to do the splices on this first and would also save damaging the car wiring

Here’s one like I’m thinking of, although it’s now out of stock -https://www.amazon.co.uk/Most-Quadlock-Extension-Connector-Adapter/dp/B00I0YXNTI

TIA


Marko70

Active Member
Jul 6, 2019
100
36
Sorry to bring up an old thread but does anyone know if it would be ok to put a quad lock extension harness between the media unit and the existing harness to splice the sub in to the speaker cables?
Thinking it would be easier to do the splices on this first and would also save damaging the car wiring

Here’s one like I’m thinking of, although it’s now out of stock -https://www.amazon.co.uk/Most-Quadlock-Extension-Connector-Adapter/dp/B00I0YXNTI

TIA
yes, I just did this this weekend, was a bit of a struggle getting wires from glovebox through to centre console but managed it. would of been easier to take the whole glovebox out but I like to do things the hard way!

Apr 28, 2019
8
1
yes, I just did this this weekend, was a bit of a struggle getting wires from glovebox through to centre console but managed it. would of been easier to take the whole glovebox out but I like to do things the hard way!
Thanks I’ll get one ordered up and give it a go this weekend.

Edit:- Have just been looking for a quad lock extension and there seems to be 40 pin and 52 pin ones, which one did you use?

Last edited:

Damo H

Carbon Snob
Staff member
Moderator
Oct 3, 2012
3,774
2,222
Car Length In Front
Sorry to bring up an old thread but does anyone know if it would be ok to put a quad lock extension harness between the media unit and the existing harness to splice the sub in to the speaker cables?
Thinking it would be easier to do the splices on this first and would also save damaging the car wiring

Here’s one like I’m thinking of, although it’s now out of stock -https://www.amazon.co.uk/Most-Quadlock-Extension-Connector-Adapter/dp/B00I0YXNTI

TIA
Now there is an idea....


Damo H

Carbon Snob
Staff member
Moderator
Oct 3, 2012
3,774
2,222
Car Length In Front
  • Like
Reactions: Wastedagen
