what have you done to your car today ?

Sl1ced

Active Member
Oct 10, 2020
240
79
I wish I had bought a cupra r. That engine bay layout is so much better on the eyes


Sent from my iPhone using Tapatalk


iammooks

Active Member
Nov 27, 2018
510
216
Absolutely hooned it down with rain last night. I can guarantee that at least 50% of mk1 owners are dreading the next time they open their doors...


Sent from my iPhone using Tapatalk


Sl1ced

Active Member
Oct 10, 2020
240
79
I didn’t manage to get the carpet up yet so mines still wet. Although going through my boxes last night I found a jubilee clip, spent hours trying to figure out what it was for then it hit me..... it should be holding my TIP on. Crud spent hours manipulating it on lol but we’re good now. Got track rod ends and a rocker gasket on the cards next


Sent from my iPhone using Tapatalk


iammooks

Active Member
Nov 27, 2018
510
216
It's weird - my doors are all well sealed, but I seem to be getting water coming through from the mat under the pedals.

The rest of the carpet is dry, so it's weird that this bit is letting water through. I've had to take the aftermarket mat out because it goes mouldy, but it's the only place that lets water through.


Sent from my iPhone using Tapatalk


Thai-wronghorse

Active Member
Dec 3, 2015
1,541
480
Kent
If you've already done the window regulator panels then check around the door speakers as these can also leak.
Next on the list if places should be beneath the scuttle tray where the engine harness passes through the bulkhead.
I've just done mine as I'd had the loom apart so the seal was broken.


Sent from my SM-G986B using Tapatalk

  • Like
Reactions: iammooks and Rich.T

iammooks

Active Member
Nov 27, 2018
510
216
If you've already done the window regulator panels then check around the door speakers as these can also leak.
Next on the list if places should be beneath the scuttle tray where the engine harness passes through the bulkhead.
I've just done mine as I'd had the loom apart so the seal was broken.


Sent from my SM-G986B using Tapatalk
Thank you - I've done the doors a couple of times over the years and I'm pretty confident I've got them sorted - although if anyone has any advice on getting the residue off - either from the original tape or the butyl sealant - that'd be great - just to make sure there's nowhere for the water to get through.

I take it it's just a matter of putting butyl sealant around the edge like you've done there? That's easy enough to do...

I managed to get outside to check the shocks to see if the bounce test shed any light on my ride issues. The best way to describe what's happening is that it feels like all of my wheel nuts are loose and the car's swaying on the axle. Just to say, no, the wheel nuts are all tight and torqued!

I can afford to spend the money replacing the shocks, but I can't afford to replace the shocks if that's not what the problem is, if you see what I mean.

Any help very gratefully received...!


Connor H

Active Member
Dec 19, 2019
552
210
Essex
Thank you - I've done the doors a couple of times over the years and I'm pretty confident I've got them sorted - although if anyone has any advice on getting the residue off - either from the original tape or the butyl sealant - that'd be great - just to make sure there's nowhere for the water to get through.

I take it it's just a matter of putting butyl sealant around the edge like you've done there? That's easy enough to do...

I managed to get outside to check the shocks to see if the bounce test shed any light on my ride issues. The best way to describe what's happening is that it feels like all of my wheel nuts are loose and the car's swaying on the axle. Just to say, no, the wheel nuts are all tight and torqued!

I can afford to spend the money replacing the shocks, but I can't afford to replace the shocks if that's not what the problem is, if you see what I mean.

Any help very gratefully received...!
Check your front subframe bolts and bushes, mine were loose and the car felt weird. Arb bushes all good? your rear beam bushes might be the culprit also but you have that in hand.


Sent from my iPhone using Tapatalk

  • Love
Reactions: iammooks

iammooks

Active Member
Nov 27, 2018
510
216
Check your front subframe bolts and bushes, mine were loose and the car felt weird. Arb bushes all good? your rear beam bushes might be the culprit also but you have that in hand.


Sent from my iPhone using Tapatalk
Knowing my car, they probably all need replacing. What torque should the subframe bolts be, do you know? ARB I'll have to check - I'm convinced it's bent (how, I don't know), and will have a closer look next time the car's off the ground, so the bushes could be worn out too. No clunks or other issues though, so there's that...


Connor H

Active Member
Dec 19, 2019
552
210
Essex
Knowing my car, they probably all need replacing. What torque should the subframe bolts be, do you know? ARB I'll have to check - I'm convinced it's bent (how, I don't know), and will have a closer look next time the car's off the ground, so the bushes could be worn out too. No clunks or other issues though, so there's that...
Subframe bolts 100nm + 90 degrees when torquing, as long as they’re not proper loose with a ratchet you can probably discount them being the issue. Silly one but have you checked your tyre pressures?

Your arb bushes might be worn? they are just crappy rubber, mine were loose when I took them off and yours is older than mine


Sent from my iPhone using Tapatalk

  • Like
Reactions: iammooks

iammooks

Active Member
Nov 27, 2018
510
216
Spent half the day cursing it whilst attempting to bleed the clutch & brakes.
I couldn't get VCDS to run on my laptop so wasn't able to cycle to ABS pump either which resulted in my efforts been wasted.
I've been thinking about this a lot lately, what with all the problems I've had with my brakes, and I don't want to spend time and money on a job I might not need to do.

How are your brakes performing without doing the ABS bleed? How does the pedal feel?

In the past few months, I've either bled or had my brakes bled about four times, and I still don't have a positive brake feel, as well as a sinking pedal. That said, I've got to push firmly and keep pushing for the pedal to keep moving. It's obviously not right, but I'm on the verge of replacing the master cylinder and then having to bleed the whole system once again, and I only want to do that if it's going to solve my problem.

When I garaged it, I mentioned the VCDS ABS bleed and they just dismissed it out of hand - and they're supposed to be the VAG specialist for Brighton, which pissed me off a bit to be honest, given they charged me £115 for fitting two crush washers and doing a bleed.

So, what I definitely don't want to do is replace the master cylinder and then need to get the ABS cycled if all I really need to do is get the ABS cycled, but I don't want to get the ABS cycled, find out it's the master cylinder and then replace the master cylinder and have to pay to get the ABS cycled again.

If that makes any sense?


iammooks

Active Member
Nov 27, 2018
510
216
Subframe bolts 100nm + 90 degrees when torquing, as long as they’re not proper loose with a ratchet you can probably discount them being the issue. Silly one but have you checked your tyre pressures?

Your arb bushes might be worn? they are just crappy rubber, mine were loose when I took them off and yours is older than mine


Sent from my iPhone using Tapatalk
I'll definitely have a look when I've got a chance next. With lockdown being what it is, that may not be for a while, but I'll be sure to look you up when I do... ;)

Tyre pressures are all good - after going years with persihed tyres and wheels that needed refurbishing, I'm checking the beggars all the time and I can't stop now, even with everything replaced and refurbed.

Luckily I'll be doing a fair bit of work on the engine side over the Christmas break, so I'll have the undertray off and the axle stands out, so we'll find out once and for all what the problem is.

Hopefully.

  • Like
Reactions: Connor H

Thai-wronghorse

Active Member
Dec 3, 2015
1,541
480
Kent
From my understanding it's important to cycle the ABS if the master cylinder or ABS pump have been drained of fluid.
It's not necessary if you've simply removed a caliper.

Sent from my SM-G986B using Tapatalk

  • Like
Reactions: iammooks

iammooks

Active Member
Nov 27, 2018
510
216
From my understanding it's important to cycle the ABS if the master cylinder or ABS pump have been drained of fluid.
It's not necessary if you've simply removed a caliper.

Sent from my SM-G986B using Tapatalk
I think I did, to be honest. I'd read some advice somewhere about draining some of the old brake fluid before starting a bleed, and with it being my first time, I probably got too enthusiastic.

How do the brakes feel when they need the ABS cycle? I've heard loads of people say it needs doing, but not so much about what effect it has on braking and how they know it needs doing.


Thai-wronghorse

Active Member
Dec 3, 2015
1,541
480
Kent
My pedal feels absolutely crap tbh, I've lost count of how many times I've bled the master cylinder, clutch slave cylinder and all 4 calipers.
Even after cycling the ABS pump several times which did help admittedly but certainly not enough for me to warrant using the car on the road.

Sent from my SM-G986B using Tapatalk

  • Like
Reactions: iammooks

iammooks

Active Member
Nov 27, 2018
510
216

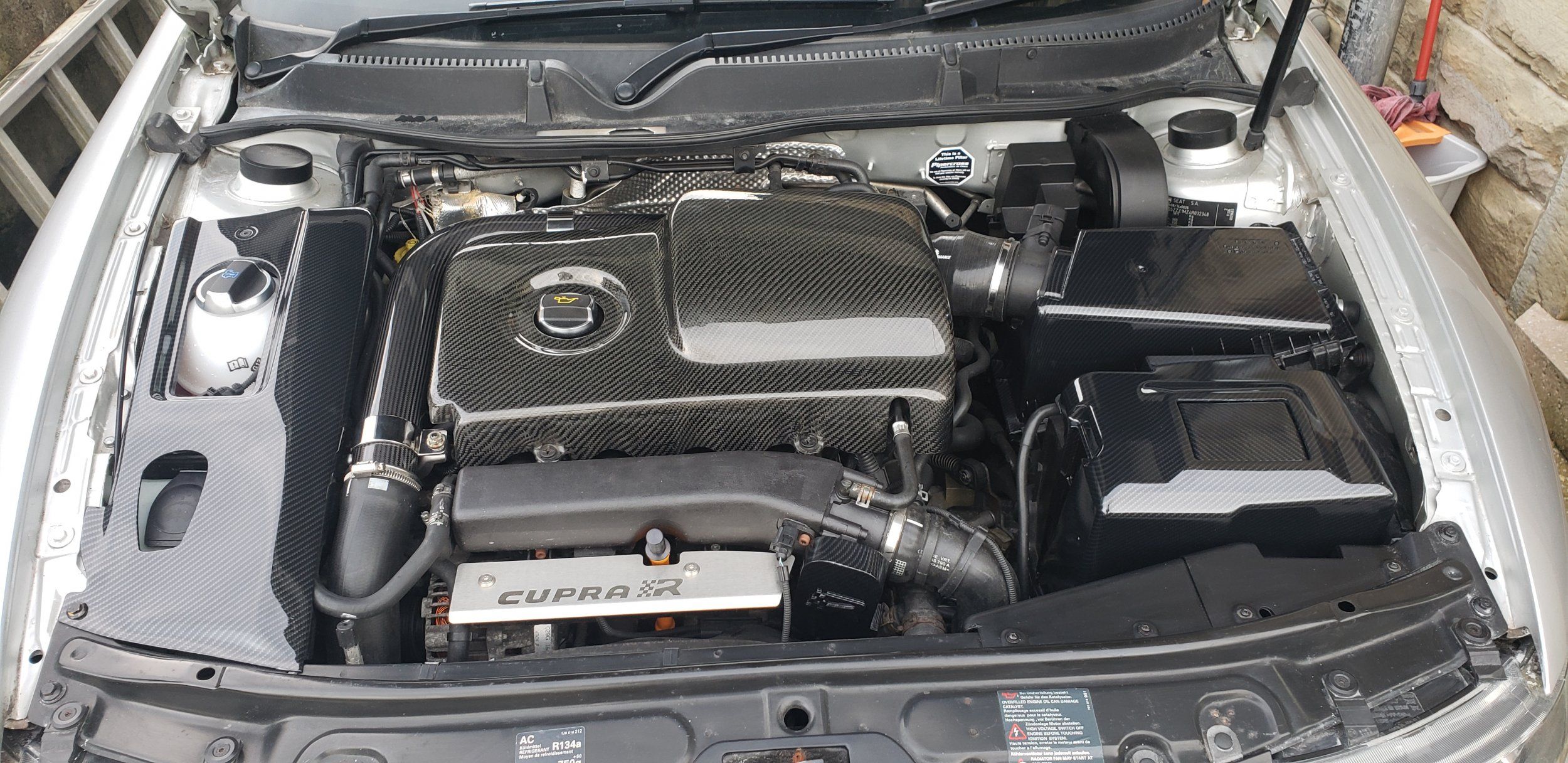

Well got a big chunk of the engine bay tarted up while its dry just the inlet and hopefully throttle body to be powder coated in warmer weather lol.

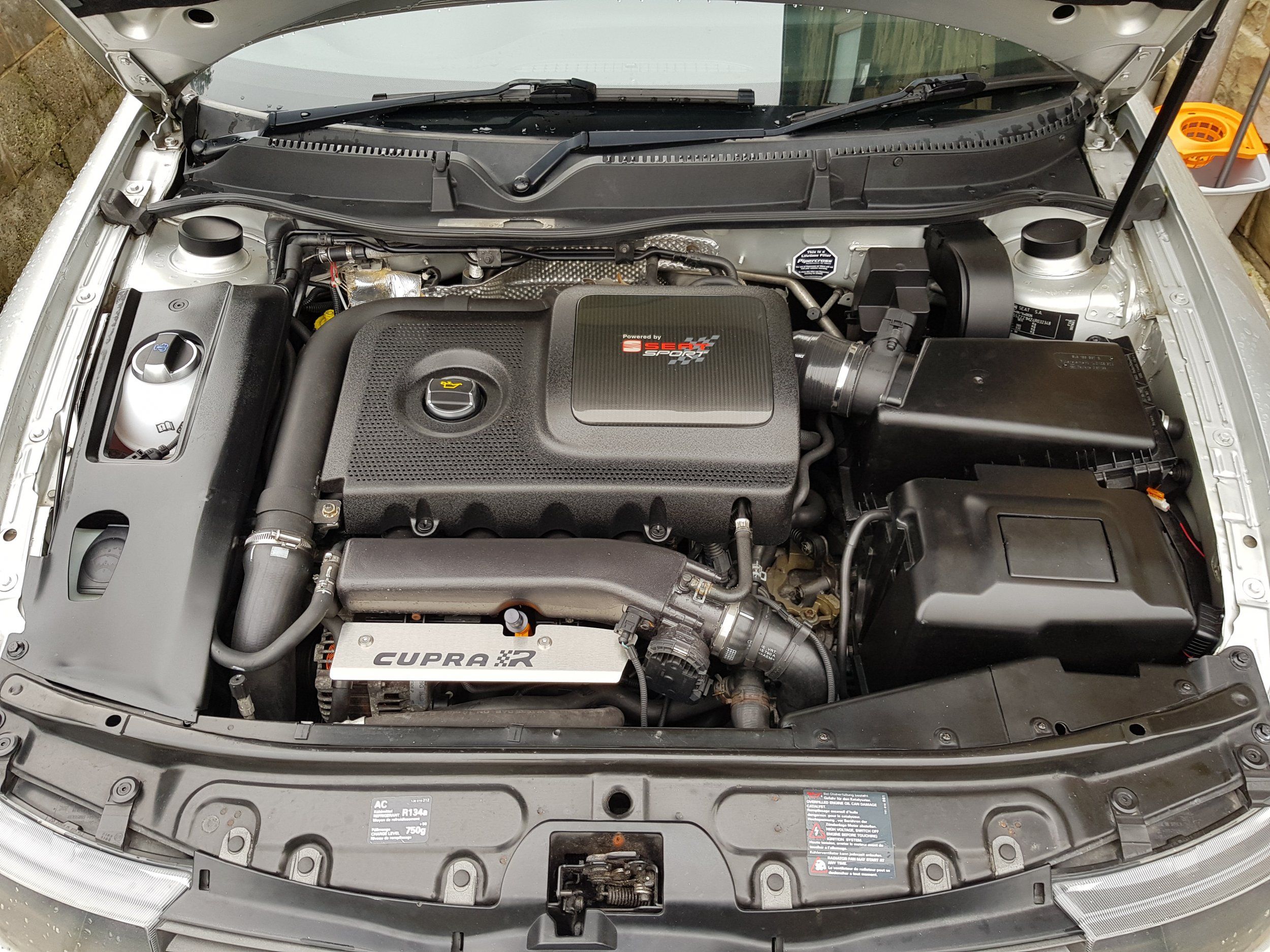

The 1st pic is how it was, 2nd is new look.
Ooh **** me... That is the absolute balls. Put our engine bays side by side and it's the equivalent of the time you take your top off at the beach and you're all pudgy and pale, and then some geezer strolls past all tanned and ripped.

Not that this has ever happened to me.

  • Like
  • Haha
Reactions: Dazzalcr and Rich.T

Thai-wronghorse

Active Member
Dec 3, 2015
1,541
480
Kent
Well got a big chunk of the engine bay tarted up while its dry just the inlet and hopefully throttle body to be powder coated in warmer weather lol.

The 1st pic is how it was, 2nd is new look.
I assume you've chopped up and fibreglassed a standard S3 coolant cover to get that shape?


Sent from my SM-G986B using Tapatalk


iammooks

Active Member
Nov 27, 2018
510
216
My pedal feels absolutely crap tbh, I've lost count of how many times I've bled the master cylinder, clutch slave cylinder and all 4 calipers.
Even after cycling the ABS pump several times which did help admittedly but certainly not enough for me to warrant using the car on the road.

Sent from my SM-G986B using Tapatalk
Honestly, that does help.

This whole process has been a pain, but working on a process of elimination, the brake fluid is new and has been bled a few times, my calipers are fine and don't have any leaks, the brake lines are fine, so it only leaves the master cylinder and the ABS.

I've learnt a lot about master cylinders refurbishing the spare I've got, and even though my brake fluid was rotten, I find it hard to believe the internals of the master cylinder are shot. The pedal was pretty good before I tried to bleed it for the first time, so either the bleed has revealed problems that the old brake fluid was hiding or it's something new - like the ABS. I tried it on a gritty road the other day and it didn't come on, so that's got me wondering...


Sl1ced

Active Member
Oct 10, 2020
240
79
Well.... I’ve changed both track rod ends. Was one of the easiest jobs I’ve done. Also found out my centre exhaust hanger is no longer connected to the pipe, is this mot failure?

And dropped the car back onto its wheels and I noticed the flat tyre sound drivers side front, jacked it back up and slight resistance for about 20 degrees of the rotation, doesn’t sound like brakes are binding. A quick look under and on the box side of the driveshaft I have fluid on the shield and bottom of the cv joint. Could this be the source of the sound? Only just changed the other shaft a few weeks back. Should’ve done the pair.

Also got a photo of the old track rod ends lol



Sent from my iPhone using Tapatalk


Dazzalcr

Active Member
Aug 10, 2019
80
45
Ooh **** me... That is the absolute balls. Put our engine bays side by side and it's the equivalent of the time you take your top off at the beach and you're all pudgy and pale, and then some geezer strolls past all tanned and ripped.

Not that this has ever happened to me.
Love this comment, so funny, but cheers mate im happy with it.

  • Like
Reactions: iammooks
